The stakes are real. Choosing the wrong SFP type wastes budget on unnecessary optics, or worse, forces a costly redesign when a "short" link turns out to need to run 3km across campus. This guide breaks down the actual specs, real use cases, and how to pick (and buy) the right module — including where refurbished optics can stretch your hardware budget further.
TL;DR
- Single-mode SFPs use laser sources (FP/DFB) over 9µm fiber cores for long-haul links from 10km to 80km+
- Multimode SFPs use cheaper VCSEL sources over 50/62.5µm cores for short runs, typically 300m to 550m
- Exact reach depends on the specific module and fiber grade, not a blanket "single-mode vs multimode" rule
- Never mix SFP type and fiber type without a mode-conditioning patch cord: it causes signal loss and unreliable links
- Buying tested, refurbished enterprise optics (Cisco, Juniper, Arista, Brocade) cuts hardware costs versus new OEM pricing

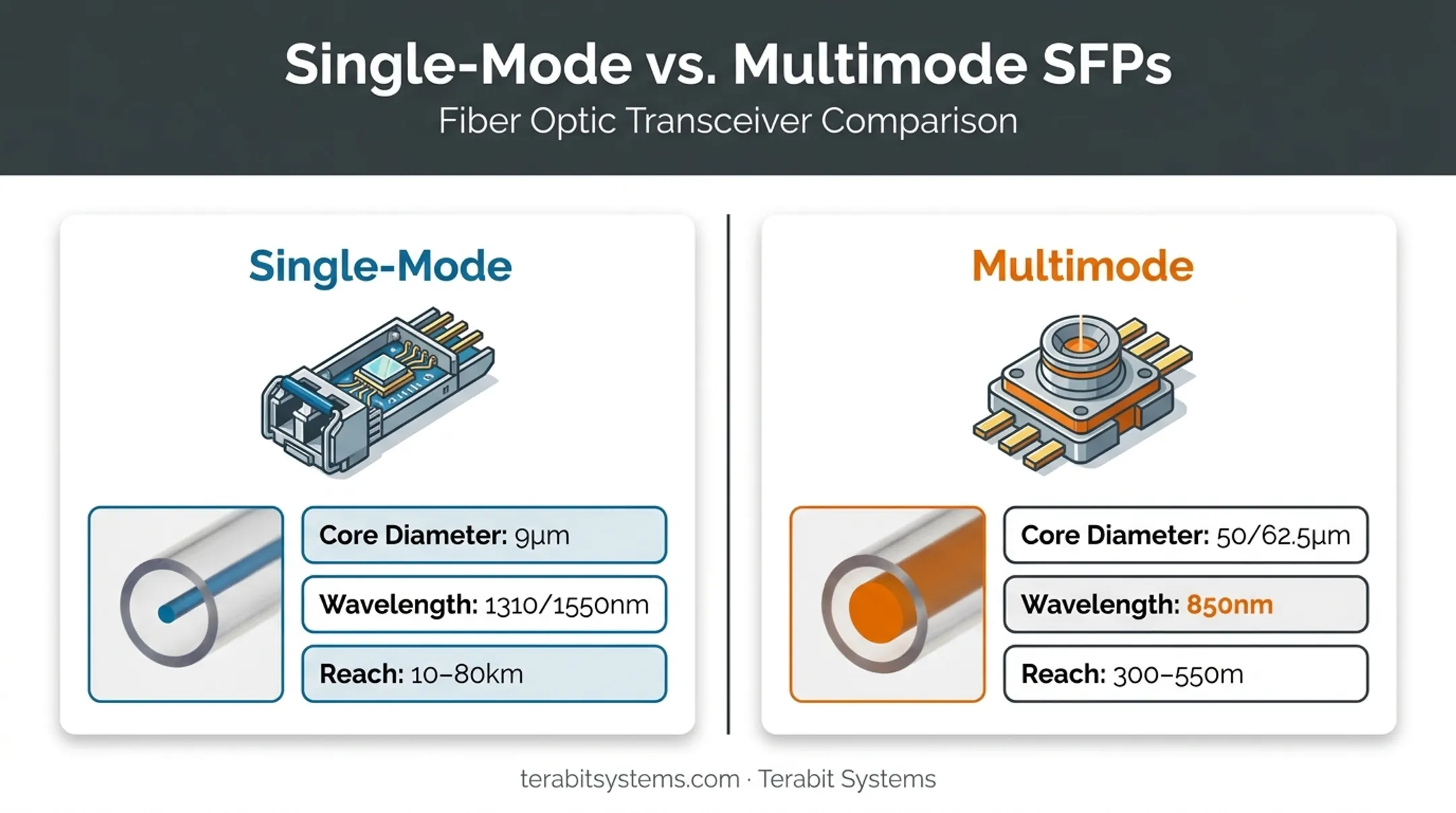

Single-Mode vs Multimode SFP: Quick Comparison
| Factor | Single-Mode | Multimode |
|---|---|---|
| Light source | DFB/FP laser | VCSEL/LED |
| Fiber core | 9µm | 50µm or 62.5µm |
| Wavelength | 1310nm / 1550nm | 850nm |
| Typical reach | 10km–80km (module-dependent) | 300m–550m (module-dependent) |
| Cost | Higher (precision laser optics) | Lower (simpler source technology) |
| Best fit | Metro, campus backbone, DCI | Data center racks, short LAN runs |
Price tracks reach and optics complexity. The Juniper EX-SFP-1GE-SX (multimode, 850nm) runs up to 550m with an MSRP around $500. A long-reach single-mode module in another rate class, the Juniper SFPP-10GE-ZR (1550nm, 80km), lists near $14,000. Much of that gap comes from the precision laser components needed to push signal that far without degrading.
Distance figures aren't universal, though. 1000BASE-SX tops out around 1,000m on multimode, while 10GBASE-SR drops to just 300m on OM3 fiber and 400m on OM4. Always check the specific module's datasheet rather than assuming a "multimode = short" rule of thumb.
What Is a Single-Mode SFP?
A single-mode SFP is a transceiver built for OS2 single-mode fiber. It uses a laser source, either Fabry-Perot (FP) or distributed feedback (DFB), to push light through a narrow 9µm core with minimal dispersion.
Why it matters: Less signal spreading means light travels farther before it needs regeneration. The same narrow core supports CWDM/DWDM wavelength multiplexing, so you can add capacity on a single fiber pair without pulling new strand.
Common Single-Mode Variants
- LX/LH — 1310nm, typically 10km (Juniper EX-SFP-1FE-LX, ~$700 MSRP)
- EX — 1310nm, up to 40km
- ER — 1550nm, up to 40km (Juniper SFPP-10GE-ER)
- ZR — 1550nm, up to 80km (Juniper SFPP-10GE-ZR, Juniper EX-SFP-10GE-ZR)
- CWDM variants — 1610nm, up to 80km (Juniper EX-SFP-GE80KCW1610)
Where Single-Mode Shows Up
Single-mode dominates:
- Metro-area networks connecting POPs across a city
- Campus backbone links between buildings
- Data center interconnects (DCI) linking separate facilities
- ISP and telecom long-haul transport
Cisco's fiber optics overview notes that as data rates climb, multimode's effective reach shrinks, which pushes more high-bandwidth, longer-distance deployments toward single-mode. If you are planning 25G, 40G, or 100G upgrades on existing multimode plant, that reach limit should factor into the fiber and optic choice early.
What Is a Multimode SFP?
A multimode SFP pairs with OM1 through OM5 fiber and uses a VCSEL or LED light source instead of a laser. The core is much wider (50µm or 62.5µm), which lets multiple light paths ("modes") bounce through simultaneously.
Core benefits:
- Lower per-unit transceiver cost
- Simpler, cheaper light source technology
- Ideal for high port-density, short-run deployments
Common Multimode Variants
- SX (850nm): up to 1,000m on 1G links — e.g. Juniper EX-SFP-1GE-SX ($500 MSRP)
- SR (850nm): 300m on OM3 / 400m on OM4 for 10G links
- USR (ultra short reach): Juniper EX-SFP-10GE-USR covers 10m on OM1, 20m on OM2, and 100m on OM3
Where Multimode Shows Up
Multimode is the default inside:
- Data center racks and rows (switch-to-switch, switch-to-server)
- Server room short-haul connections
- Enterprise buildings needing dense, low-cost port fill

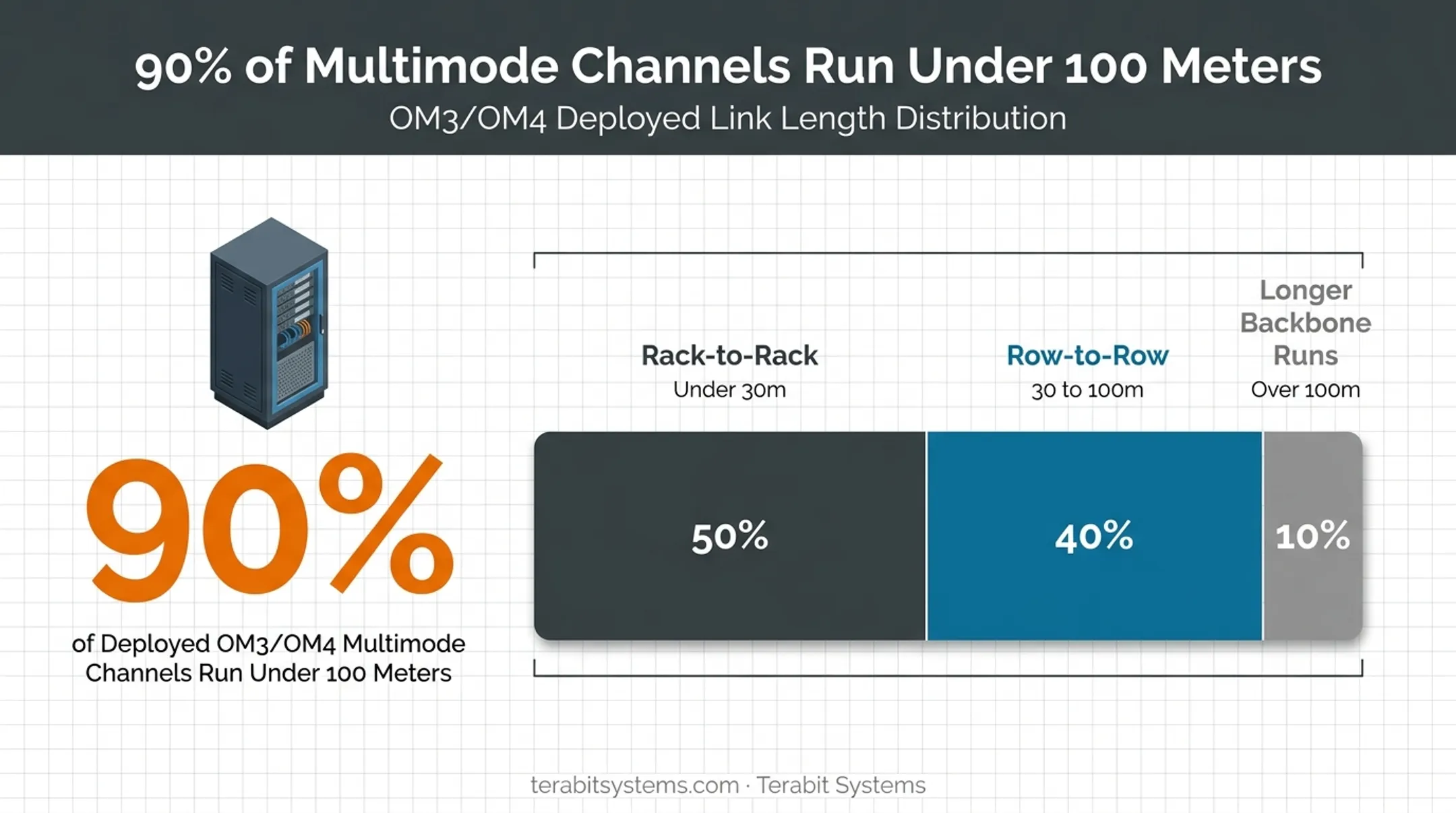

According to Corning's data center connectivity research, roughly 90% of deployed OM3/OM4 channels run under 100 meters. Most data center links never approach multimode's outer distance limits.
Inside the rack, a Brocade 10G-SFPP-SR (300m reach) or a refurbished Arista SFP-10G-SR — often around $8.50 used — covers the run without overspending on longer-reach optics.
Single-Mode vs Multimode SFP: Which Should You Choose?
The decision comes down to four factors:
- Distance: the single biggest driver
- Existing fiber plant: what's already in the walls or conduit
- Bandwidth growth plans: whether you're scaling to 25G, 100G, or beyond
- Budget: single-mode optics cost meaningfully more per unit Choose multimode if:
- Your run is under 550m
- You already have OM3/OM4 cabling installed
- Cost-per-port matters more than future headroom Choose single-mode if:
- Distance exceeds roughly 1–2km
- You want CWDM/DWDM scalability down the road
- You're building backbone or interconnect links, not rack-level connections As a practical rule of thumb, links at or under 1km typically stay on multimode, while longer runs default to single-mode.
A Note on Sourcing

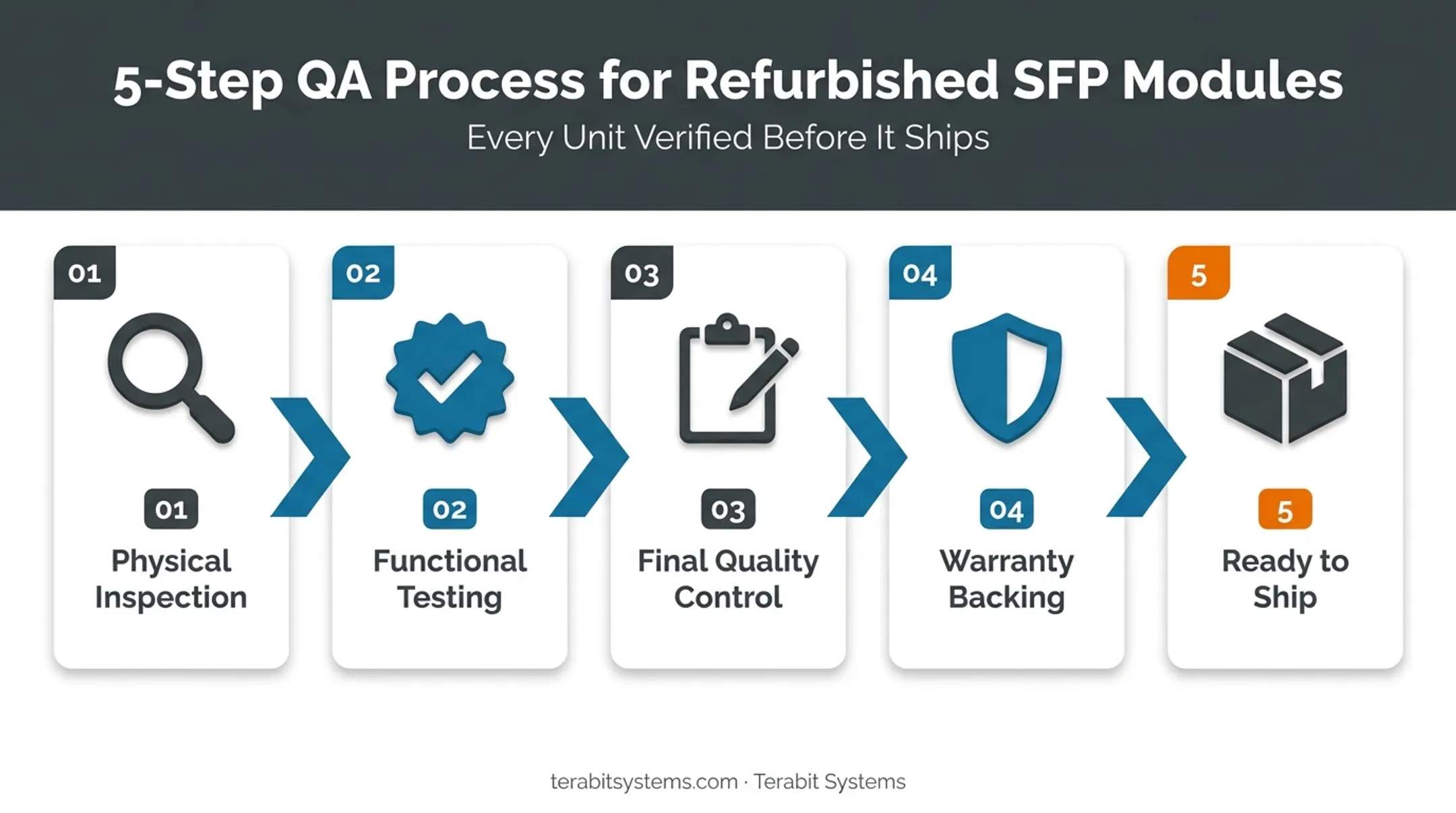

New OEM single-mode optics get expensive fast. A Juniper SFPP-10GE-ZR lists at $14,000 brand new. Terabit Systems supplies tested single-mode and multimode SFPs from Cisco, Arista, Juniper, and Brocade at a fraction of OEM list price. Each unit goes through a 5-step QA process before it ships:
- Physical inspection
- Functional testing
- Final quality control
- 1-year warranty backing For cost-conscious ISPs and cloud providers building capacity, that pricing gap is often the difference between deploying now and waiting on next quarter's budget.
Real-World Application: Matching SFPs to Growth

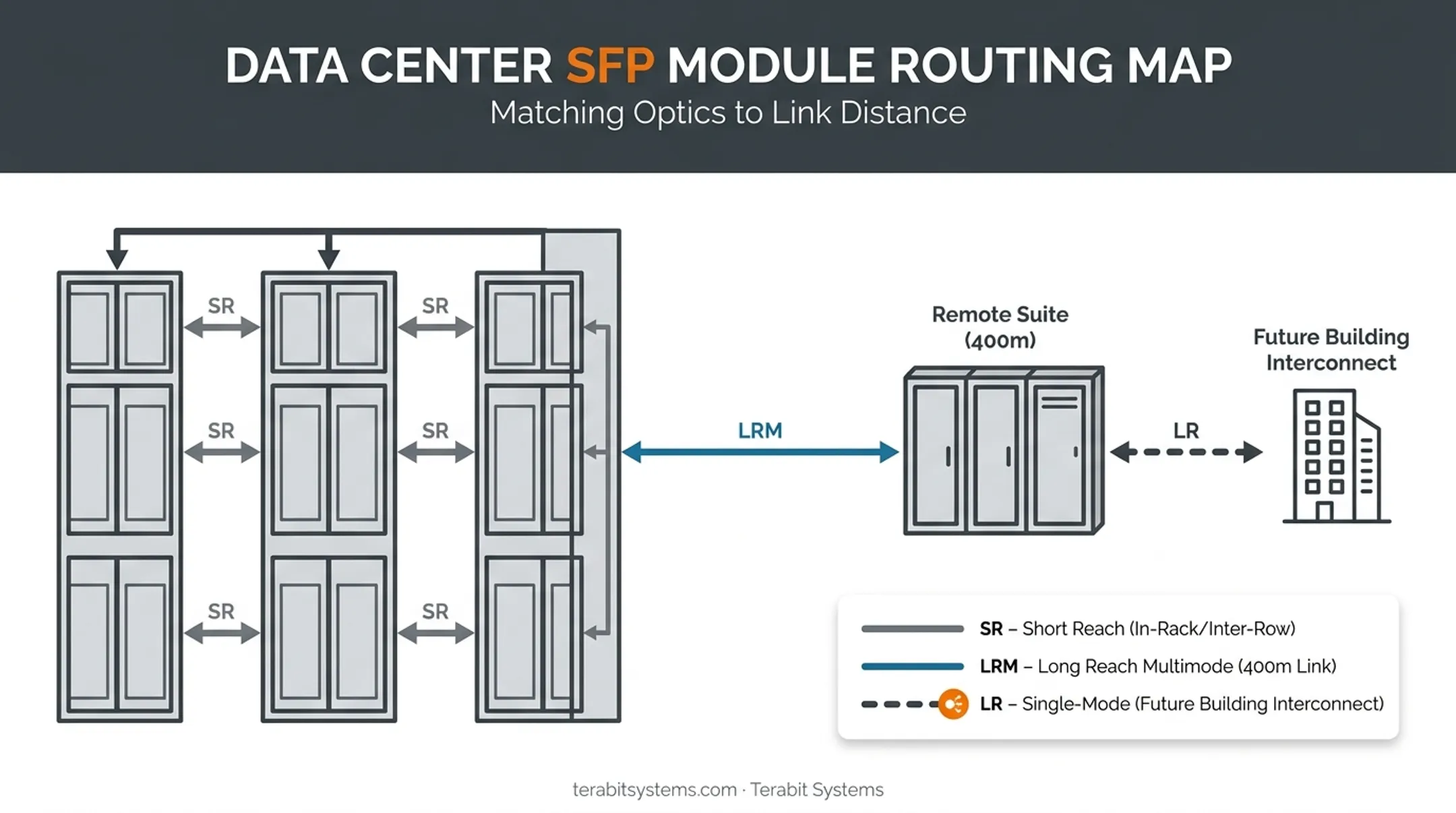

Picture a mid-sized data center refresh. The network team is expanding from a single row of racks to three, adding new switch-to-switch links plus a longer run out to a newly leased suite 400m away.
Existing OM3 cabling still handles in-rack links fine, but the 400m run sits near the edge of what a 10GBASE-SR module can reliably support on that fiber grade. Rather than rip out the run for single-mode cabling, the team matched modules to each link:
- 10G-SFPP-SR (300m on OM3) for in-rack and inter-row links
- Juniper EX-SFP-10GE-LRM ($1,750 MSRP) for the 400m stretch — LRM is built to extend reach over existing multimode plant
- SFPP-10GE-LR single-mode modules only where a future building interconnect is planned
They skipped a full cabling overhaul, cut cost with tested refurbished optics instead of new OEM units, and sized each port to real distance instead of loading every link with single-mode gear.
Match the SFP to distance and bandwidth — not the reverse. Single-mode where multimode works wastes budget; multimode on a true 2km link means a redo later.
Planning a similar expansion? Terabit Systems offers a free audit of surplus or legacy SFP inventory and can source tested, cost-effective optics for the build.
Conclusion
Neither single-mode nor multimode SFP is the "better" choice in isolation. The right pick depends entirely on your distance requirements, what fiber is already in the ground or in the walls, and where your bandwidth needs are headed.
Match the optic to those three factors and you sidestep compatibility issues while keeping links stable as traffic grows.
If you need tested single-mode or multimode SFPs without full OEM pricing, Terabit Systems stocks refurbished modules backed by a 1-year warranty—so you stretch the network budget without cutting corners on quality.
Frequently Asked Questions
How do I tell if an SFP is single-mode or multimode?
Check the label markings for SMF or MMF designation and the listed wavelength (1310/1550nm indicates single-mode, 850nm indicates multimode). You can also pull vendor part-number data through switch commands to confirm against the datasheet.
How do I know if I need single-mode or multimode fiber?
It comes down to distance. Runs under 550m generally favor multimode; anything beyond roughly 1-2km requires single-mode for reliable transmission.
Can I use single-mode fiber with multimode fiber?
Not recommended in most cases. Some modules, like Cisco's LX/LH, support both media at different distances, but pairing mismatched fiber types without proper mode-conditioning patch cords causes signal loss.
Is multimode SFP cheaper than single-mode?
Generally, yes. A new multimode module like the EX-SFP-1GE-SX often lists around $500, while a long-haul single-mode ZR module can list near $14,000. Pricing converges somewhat for short-reach single-mode options.
Can I connect a multimode SFP with single-mode fiber?
No. The core diameter mismatch (9µm vs 50/62.5µm) causes severe signal loss and unreliable links. Always match the SFP type to the fiber it's rated for.
What is the maximum distance for single-mode vs multimode SFP?
Multimode typically maxes out between 300m and 1,000m depending on the module. Single-mode can reach 80km or more, depending on the specific transceiver's laser and wavelength rating.
