That convenience creates a common mistake. Many buyers assume any Ethernet cable will handle PoE just fine. It won't always. The wrong cable can mean power loss, overheating in bundled runs, or a powered device that simply refuses to turn on.
This guide breaks down what PoE cables actually do, which cable categories to use, how far you can run them, and how to choose the right combination of cable and switching hardware for your network.
Key Takeaways
- PoE cables carry data and DC power on the same twisted-pair copper—no separate power run
- Cable category (Cat5e, Cat6, Cat6a) sets how much power and speed a run can support
- 100 meters is the IEEE hard limit for any PoE run, regardless of PoE class
- Shielding, conductor gauge, and build quality matter more than the "PoE" label on the box
What Does a PoE Cable Do?
A PoE cable isn't a special product category. It's a standard Ethernet cable ( Cat5e, Cat6, or Cat6a ) carrying both data and electrical current at the same time, built to meet IEEE 802.3af, 802.3at, or 802.3bt requirements.
The power itself comes from Power Sourcing Equipment (PSE), typically a PoE switch or an injector. The PSE pushes DC power onto the cable; the connected device, called a powered device (PD), pulls it off.
Common PDs you'll run into:
- IP security cameras
- Wireless access points
- VoIP desk phones
- Access control panels and door readers
- Some thin clients and small displays
Power travels over specific pin pairs, following either Alternative A or Alternative B wiring, depending on how the PSE is configured. Compliant equipment negotiates this automatically, so you rarely need to choose a mode yourself. Knowing that pin-pair alternatives exist still helps when you're chasing a dead port.
Does PoE Need a Special Cable? Understanding Categories and Standards
Short answer: no. Standard Ethernet cable works for PoE. But category and build quality determine whether it works reliably.

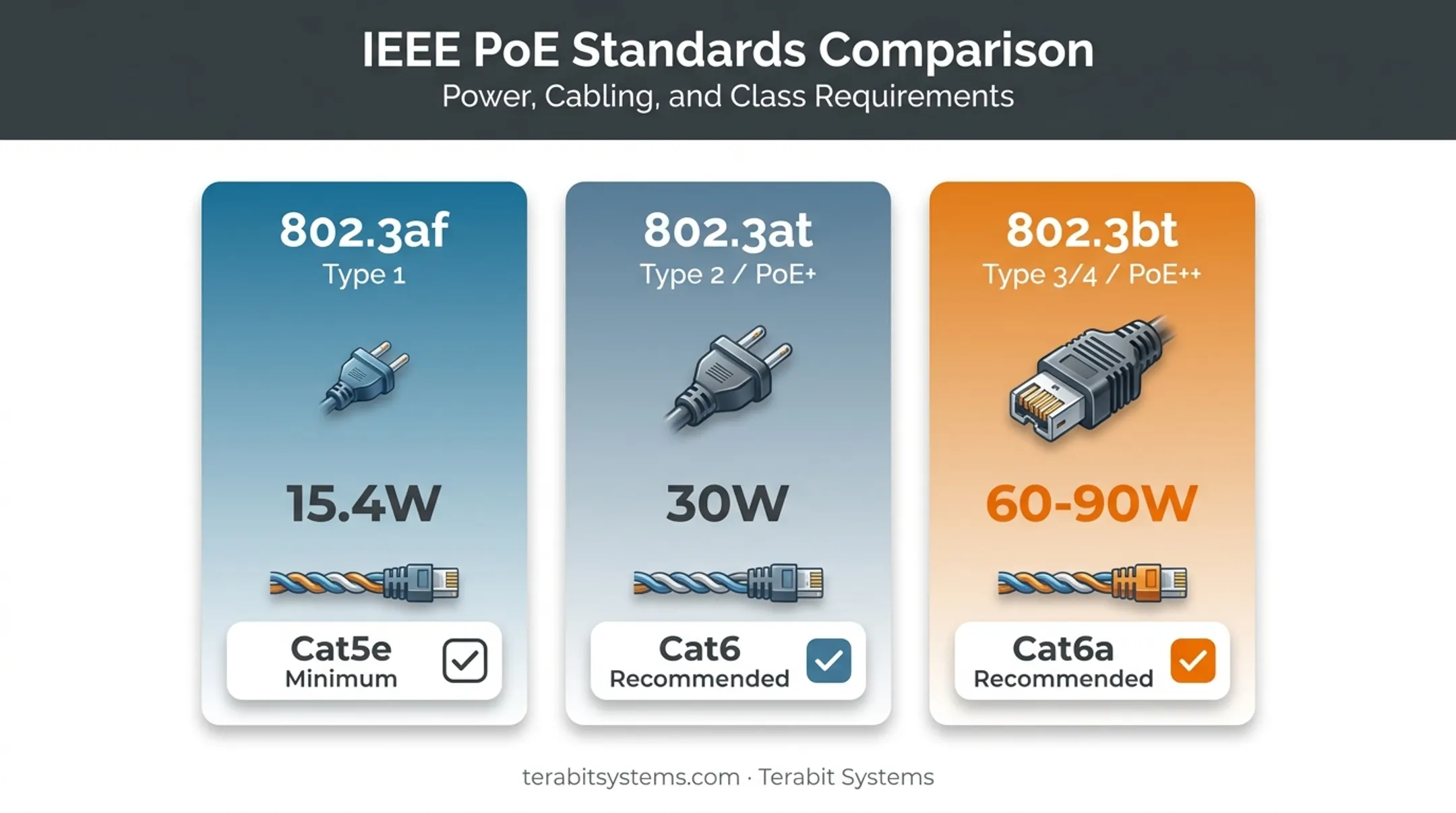

Minimum requirements by standard:
| IEEE Standard | Type | Power at PSE | Minimum Cable | Recommended Cable |
|---|---|---|---|---|
| 802.3af | Type 1 | 15.4 W | Cat5e | Cat5e/Cat6 |
| 802.3at | Type 2 (PoE+) | 30 W | Cat5e | Cat6 |
| 802.3bt | Type 3/4 (PoE++) | 60–90 W | Cat5e | Cat6 or Cat6a |
Cat5e technically meets the baseline for all three standards. But for higher-power 802.3bt deployments, Cat6 is strongly advised, and Belden's summary of TIA TSB-184-A guidance recommends Category 6A or better for new high-power PoE installations.
Why Higher Categories Matter for Power Delivery
Higher-category cable typically means tighter manufacturing tolerances, better-controlled DC resistance, and more thermal headroom. That translates to:
- Less voltage drop over long runs
- Lower heat buildup in bundled cable runs
- More consistent power delivery at higher wattages
On conductor gauge (AWG): A thicker conductor (23 AWG vs. 24 AWG) generally has lower resistance and better thermal margin for the same current. Gauge alone is not a compliance test, though. Belden's own product line includes both 23 AWG and 24 AWG cables rated for PoE Types 1–4.
What actually matters is the manufacturer's documented DC resistance, resistance unbalance, and bundle-derating data, not the gauge number by itself.
A note on used or refurbished PoE gear: Cable category still matters when the switch or injector has some age on it. Verified functionality matters just as much on the hardware side. Terabit Systems runs every used networking unit through a 5-step quality assurance process before it ships, so power delivery and port behavior are confirmed rather than assumed.
Maximum PoE Cable Length and Distance Factors
100 meters (about 328 feet). That's the ceiling under 802.3af, 802.3at, and 802.3bt, and it includes patch cables, not just the horizontal run.

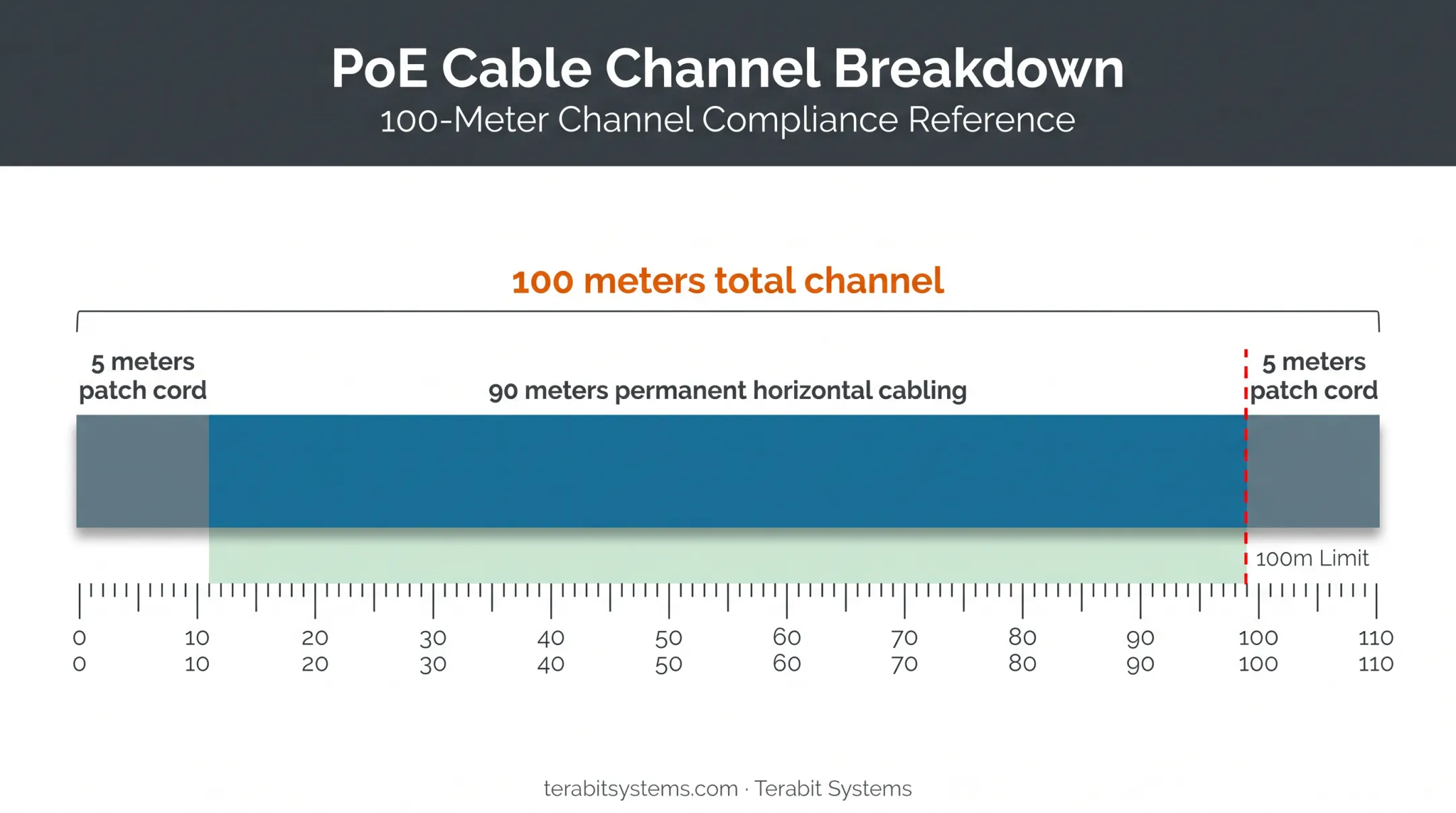

The conventional channel breakdown looks like this:
- Up to 90 meters of permanent horizontal cabling
- Up to 10 meters combined of patch cords at each end
- Total channel: 100 meters, period
This limit exists because of data transmission standards, not because power runs out of steam at 101 meters. Signal integrity degrades past that point regardless of PoE.
Need more distance? PoE extenders add a new, active link segment rather than stretching the original channel. A typical extender adds another 100 meters, giving you roughly 200 meters total. Verify the product supports your PoE type, cable category, and required PD power before relying on it.
A few environmental factors can eat into performance within that 100-meter limit even when you're technically compliant:
- High ambient temperature raises resistance and insertion loss

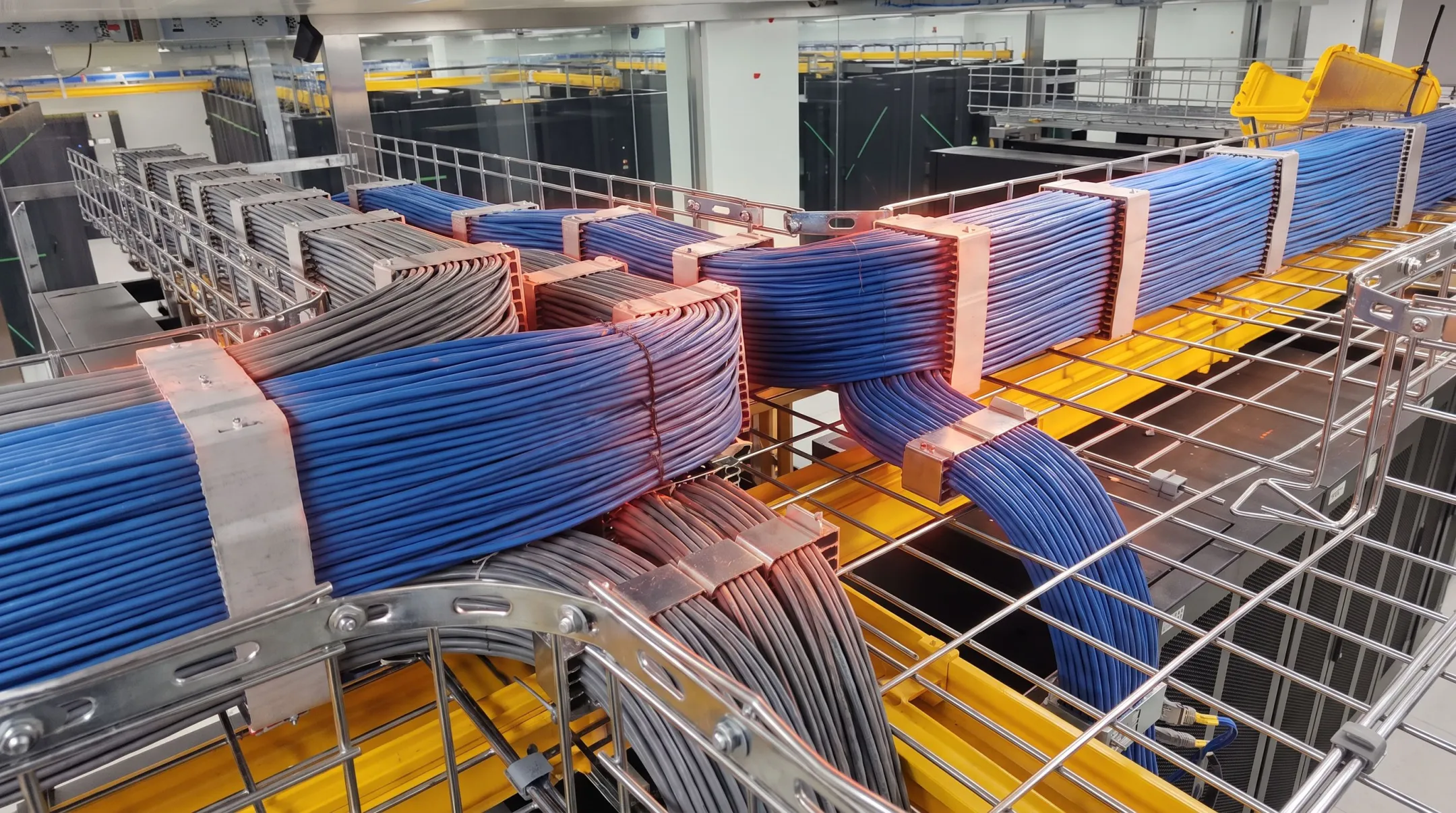

- Large cable bundles trap heat
- Nearby EMI/RFI sources disrupt signals, especially in industrial settings
Choosing the Right PoE Cable and Equipment for Your Network
Before you order cable by the box, work backward from your actual power needs.
Key considerations:
- PoE class/wattage — A basic IP camera needs far less than a pan-tilt-zoom unit or a PoE-powered access point with radios running hot
- Cable category — Cat5e for light-duty legacy deployments; Cat6/Cat6a for anything approaching PoE++ wattages
- Shielded vs. unshielded — Shielded cable helps in bundled runs or noisy industrial environments, but it won't fix a cable that's simply too long or too thin
- Indoor vs. outdoor — Outdoor runs need cable rated for sunlight exposure and moisture, not standard indoor jacketing
For example, Cisco's UPOE standard delivers up to 60 W per port over standard Cat5e/Cat6 cabling using all four pairs, double the per-port budget of standard PoE+. A modular UPOE switch such as the Cisco Catalyst 4500-E can drive many concurrent 60 W devices, limited by chassis power budget rather than cable category alone.
That's a lot of power riding on cable that looks identical to a standard patch cord, which is why cable quality can't be an afterthought.
Before deployment, always verify:
- PSE and PD support the same IEEE standard and wiring mode (A or B)
- The switch's total power budget can actually support all connected PDs simultaneously
- Existing cable runs in retrofit environments are tested, not just assumed to be compliant
Legacy buildings are notorious for this last point — cable that's been in the wall for fifteen years may technically be Cat5e but may not test out as clean Cat5e anymore.
Sourcing Reliable PoE-Ready Networking Hardware
Good cable only gets you halfway. The switch or injector on the other end has to be properly rated, tested, and matched to your device lineup. Underpowering equipment or mismatching classes causes just as many failed installs as bad cabling does.
Budget-conscious teams still need that hardware rated, tested, and matched to the devices on the cable—without paying new-equipment premiums.
What Terabit Systems offers:

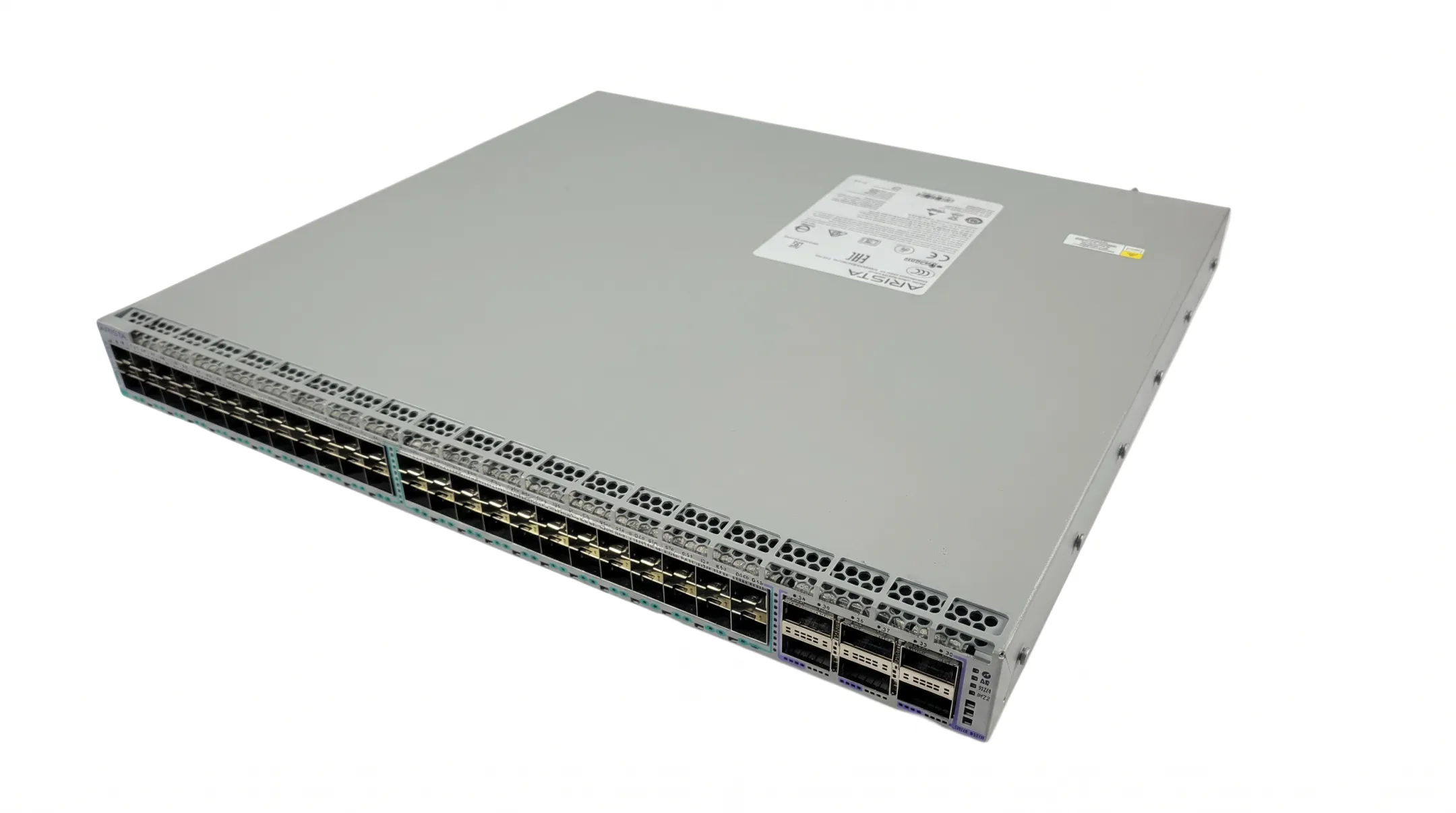

- Refurbished PoE switches from Arista, Juniper, Cisco, Extreme, and Brocade, including the Juniper EX3400-48P and Cisco Catalyst 3750V2-48PS-S
- Every unit passes a 5-step quality assurance and testing process before it ships
- 1-year "Bullet Proof" warranty coverage on sold equipment
- Significant savings vs. new-equipment pricing for ISPs, enterprise IT buyers, and VARs building out PoE infrastructure
Organizations upgrading their PoE switching infrastructure don't have to let old hardware sit in a closet, either. Terabit's asset recovery and trade-in program purchases used networking equipment at fair market value or applies it as trade-in credit. A free audit of surplus gear shows what it's worth before you decide.
Frequently Asked Questions
What does a PoE cable do?
It carries both data and electrical power over the same standard Ethernet cabling, delivering DC power to devices like IP cameras, access points, and VoIP phones without a separate power supply.
Does PoE need a special cable?
No. Standard Cat5e, Cat6, or Cat6a cable works fine, but category and build quality directly affect how reliably power gets delivered, especially at higher wattages.
What is the maximum distance for a PoE cable run?
100 meters (about 328 feet), per IEEE 802.3af/at/bt standards, including patch cables. PoE extenders can add roughly another 100 meters if you need more reach.
Can I use Cat5 cable for PoE?
Cat5 is the bare minimum for older 802.3af/at standards, but it's not recommended for PoE++ (802.3bt) applications, which need the higher power headroom that Cat6 or better provides.
Will PoE damage a non-PoE device if connected accidentally?
No. Compliant PSE equipment performs a detection step before applying power, checking for a specific resistance signature the PD presents. If it's not detected, power never gets applied.
Do shielded cables matter for PoE installations?
Yes, in the right situations. Shielding reduces interference and helps manage heat buildup in bundled or high-power runs, though it's not a substitute for proper cable length, gauge, or category.
