The choice affects your port density, your cooling budget, and how much you spend upgrading existing switches versus starting fresh. This guide breaks down the specs, the real-world use cases, and how to source either format without blowing your capex — including certified refurbished options.
TL;DR
- QSFP-DD is compact, backward-compatible with QSFP28/QSFP+, and built for high-density leaf and enterprise deployments
- OSFP is larger, with more power and thermal headroom for hyperscale, AI/HPC, and future 1.6T
- Both use 8 PAM4 electrical lanes; differences are mechanical design and power ceiling, not lane count
- Pick based on power budget, cooling, port density, and incremental vs. greenfield upgrade path

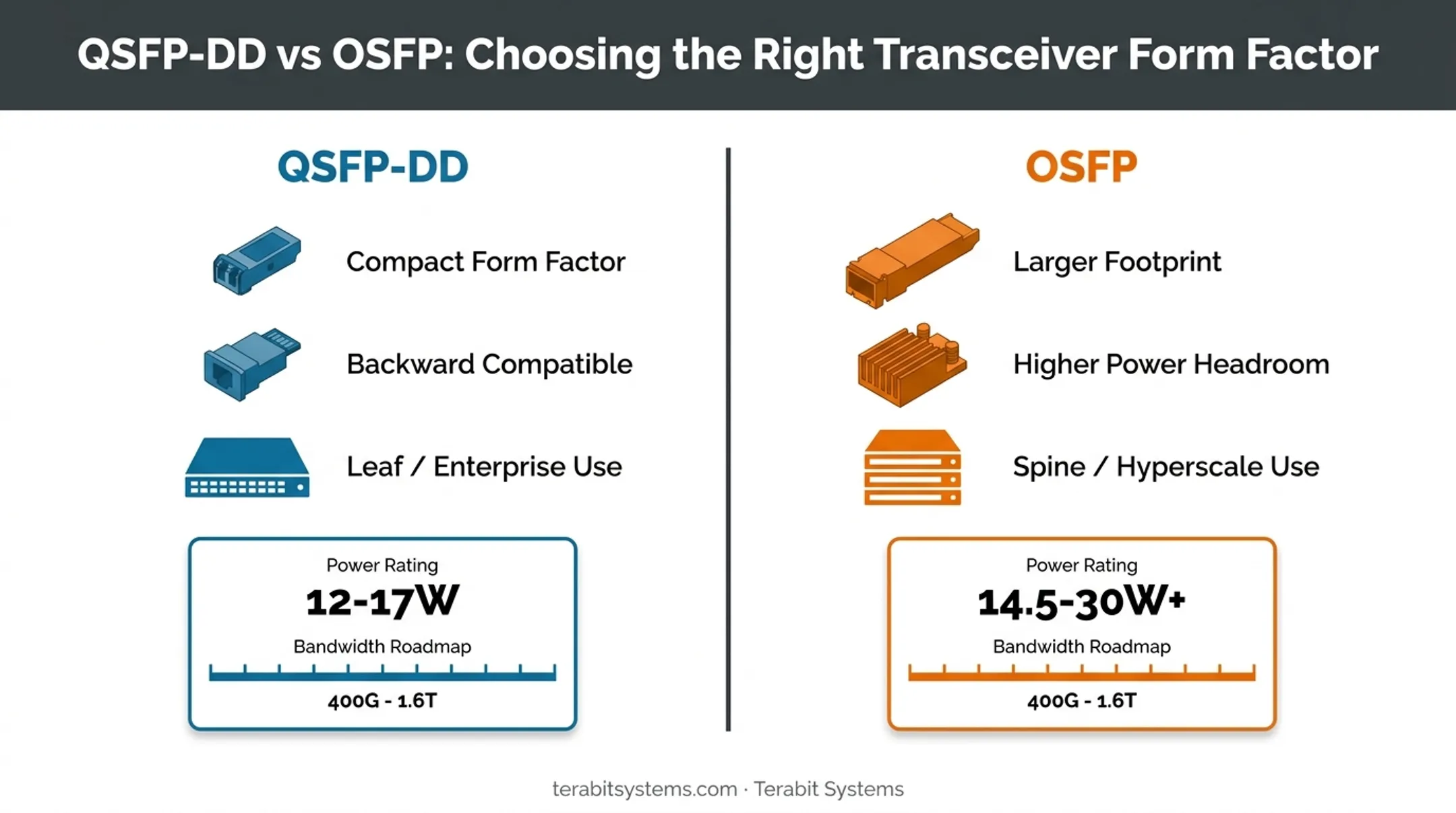

QSFP-DD vs OSFP: Quick Comparison
| Factor | QSFP-DD | OSFP |
|---|---|---|
| Size | Same height/width as QSFP28, slightly deeper | Larger footprint (roughly 13 x 22.6 x 116mm) |
| Power | 12W typical (400G), up to 17W (800G) | 14.5W-17W typical (800G), delivery capacity above 30W |
| Backward compatibility | Accepts QSFP28/QSFP+ modules directly | Requires a passive adapter for legacy QSFP optics |
| Max bandwidth | 400G today, roadmap to 800G/1.6T | 400G-800G today, roadmap to 1.6T |
| Best fit | Leaf/top-of-rack, enterprise, colocation | Spine/core, hyperscale, AI/HPC clusters |
Power Consumption & Thermal Capacity
QSFP-DD's Rev 7.1 spec defines power classes topping out around 14W-17W for most 400G/800G modules. Cisco's 400G SR8, DR4, FR4, and LR4 QSFP-DD modules all cap at 12W maximum.
OSFP was built with more headroom from the start. Its connector delivers up to 10A at 3.3V, enough for more than 30W, even though most current 800G OSFP modules (Cisco's VR8/VR8P, DR8/DR8P) run 14.5W to 17W. That extra electrical capacity matters as coherent optics and higher-power modules become standard.
Backward Compatibility
Compatibility is the sharpest split between the two formats:

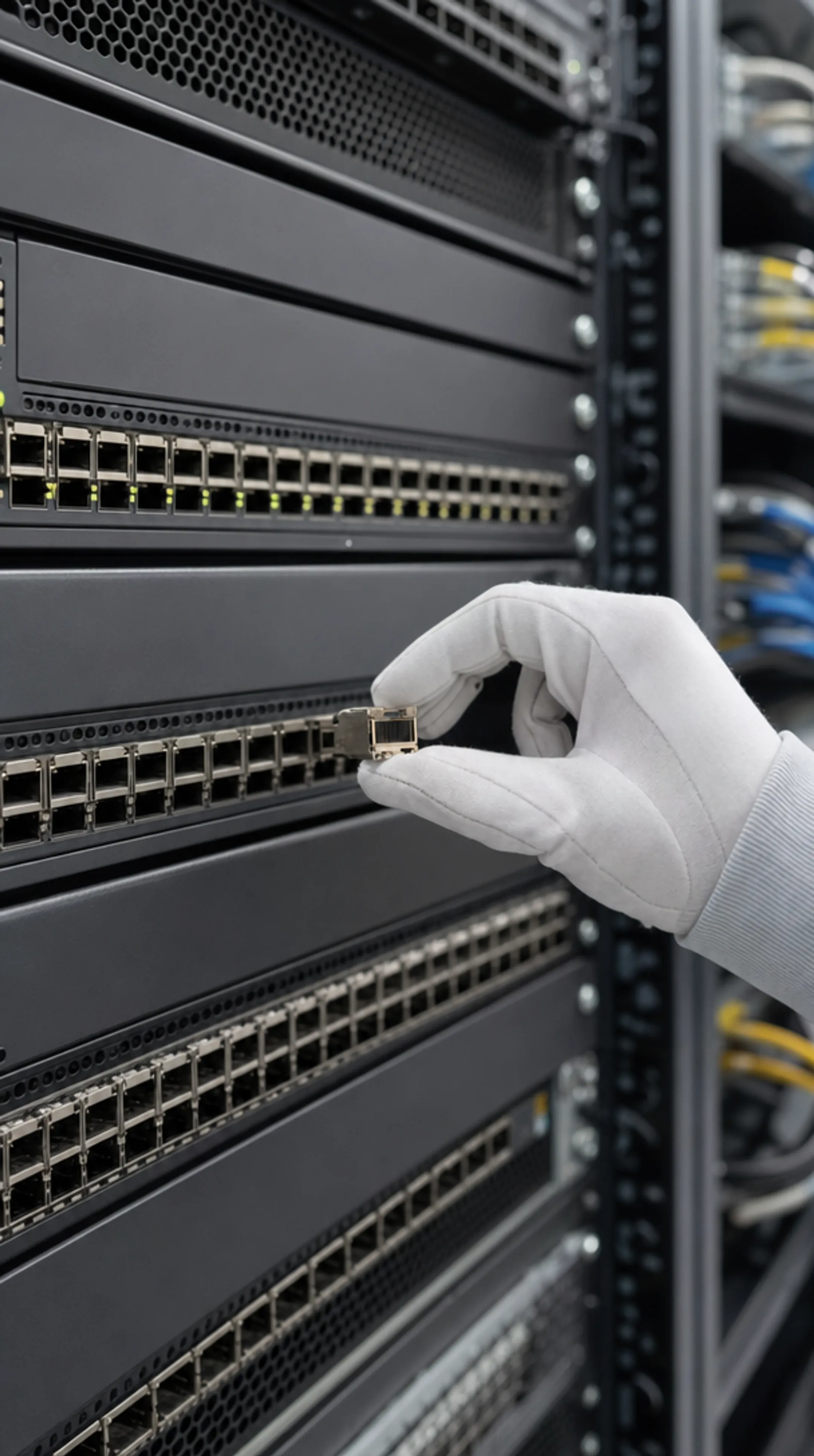

- QSFP-DD ports accept QSFP28 and QSFP+ modules directly, per Cisco's documentation — no adapter needed
- OSFP requires a passive mechanical adapter to accept legacy QSFP optics, since the cage geometry doesn't match
If you're running a fleet of QSFP28 switches today, QSFP-DD lets you upgrade port-by-port without ripping out infrastructure.
What is QSFP-DD?
QSFP-DD stands for Quad Small Form-factor Pluggable Double Density. It doubles the electrical lanes from 4 (in QSFP28) to 8, which is how it supports 200G, 400G, and — in the QSFP-DD800 and QSFP-DD1600 variants — up to 800G and 1.6T.
Why network teams choose it:
- Compact footprint identical in height and width to QSFP28
- High port density — up to 36 ports per 1U switch slot
- Direct backward compatibility with existing QSFP28 gear, cutting upgrade costs
Optical variants include SR8, DR4, FR4, and LR4, covering everything from short reach inside a data center to longer-haul links between buildings.
Use Cases of QSFP-DD
QSFP-DD dominates enterprise leaf and top-of-rack switching, plus colocation environments where port density and gradual upgrades matter more than raw thermal headroom.

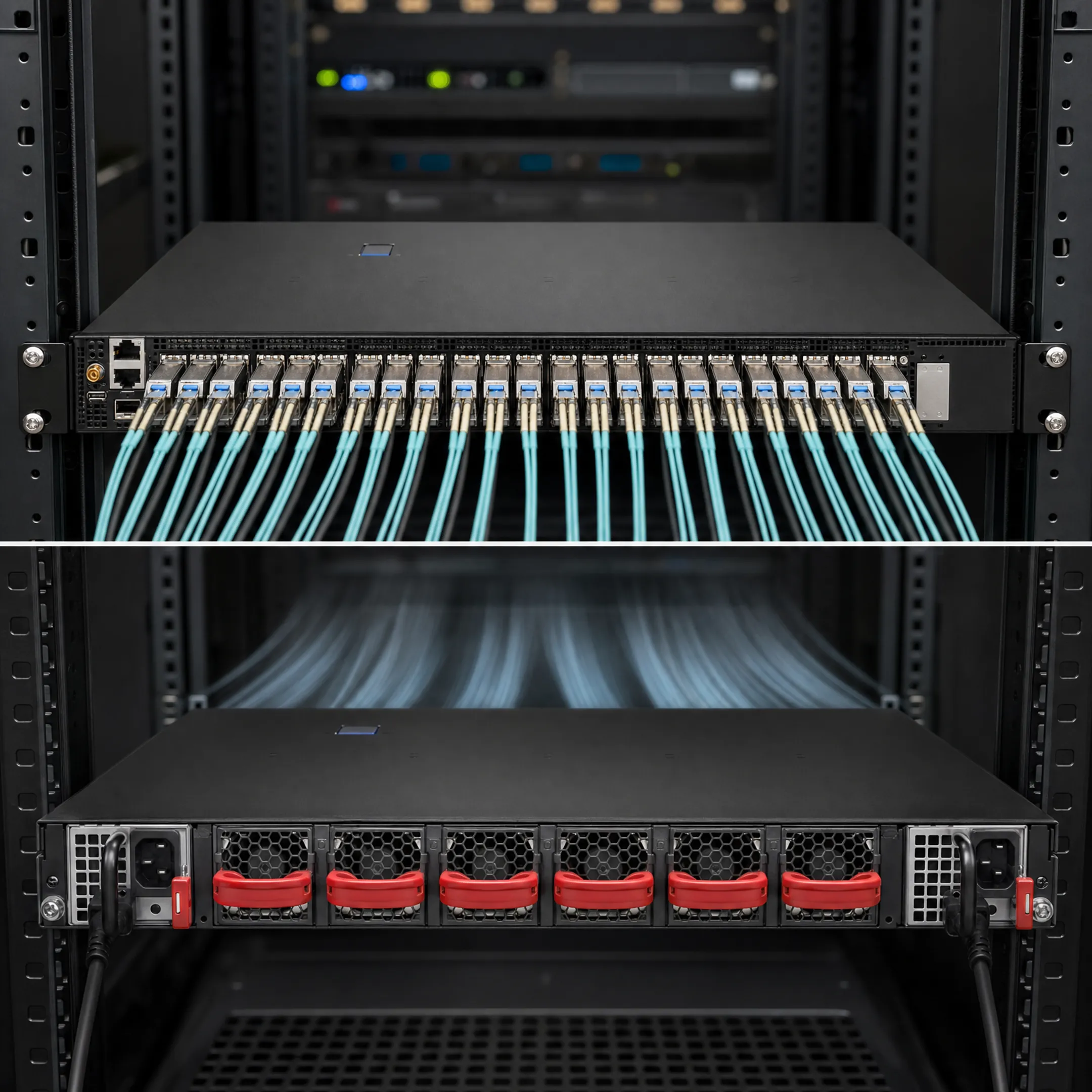

Arista's 400G lineup shows how that density plays out in practice. The DCS-7060DX5-64S-F packs 64 ports of 400GbE QSFP-DD into a single 1U chassis with front-to-rear airflow—built for leaf deployments that need max ports per rack unit.
Tier-2 cloud providers and regional ISPs favor QSFP-DD for the same reason: they can roll out 400G in phases, swapping optics without swapping switches, which keeps capex predictable. That phased path also makes used and refurbished QSFP-DD switches and optics a practical way to expand capacity without full rip-and-replace spend.
What is OSFP?
OSFP (Octal Small Form-factor Pluggable) prioritizes capability over compactness. Its larger mechanical envelope was designed around one core goal: more power, better cooling.
Core advantages:
- Integrated heatsink built into the module case, not bolted on separately
- Roughly 50% more surface area than QSFP-DD for heat dissipation
- Runs 5-15°C cooler in equivalent-system testing, according to Arista
- Electrical delivery capacity above 30W (and above 40W for OSFP1600) for higher-power optics
- Designed with 1.6T in its roadmap from the start
The tradeoff: OSFP is not backward compatible with QSFP28 or QSFP-DD without a passive adapter. You need dedicated OSFP switch ports.
Use Cases of OSFP

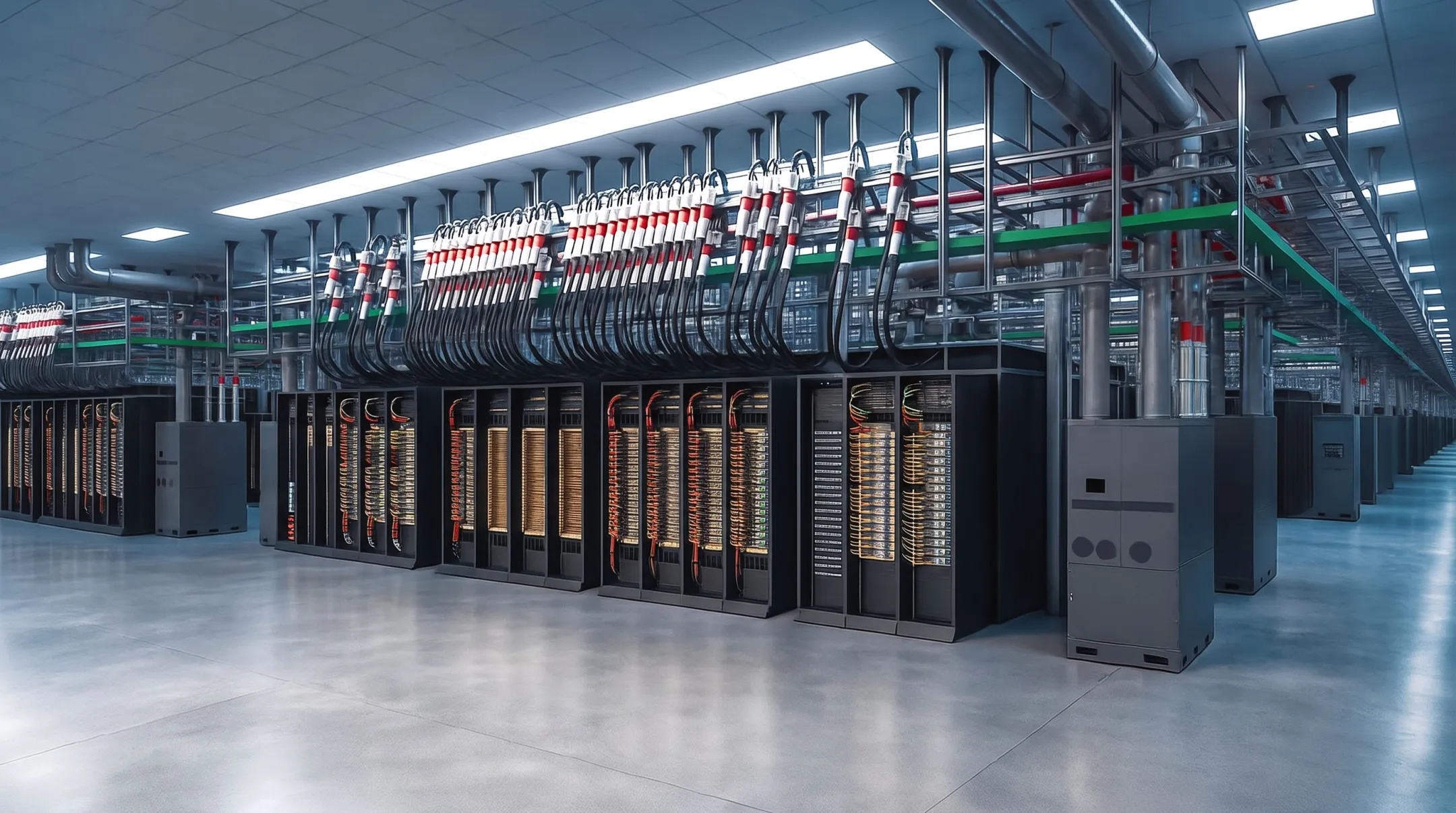

OSFP shows up most often at the spine and aggregation layer, in AI/HPC clusters, and in hyperscale data centers where sustained high-power operation is standard.
Arista's 7280R3 Series is a clear example. It targets data center core and spine switching, large-scale cloud environments, and service-provider backbone routing, with 400GbE OSFP configurations built in.
Juniper's 800G portfolio similarly offers OSFP800 options for AI/ML-cluster applications alongside QSFP-DD800.
For operators planning multi-year scalability toward 1.6T, OSFP's thermal and power headroom supports that path without an early platform swap.
QSFP-DD vs OSFP: Which Is Better?
There's no universal winner here. The right call depends on four things:
- Power budget: how much wattage per port can your PSUs and PDUs actually support?
- Cooling infrastructure: can your airflow design handle higher-power optics at scale?
- Port density needs: are you optimizing for ports-per-rack-unit or performance headroom?
- Network layer: is this a leaf, spine, or backbone deployment?
Choose QSFP-DD if:
- You need cost-efficiency and high port density
- Backward compatibility with QSFP28 infrastructure matters
- You're deploying at the enterprise or leaf layer
Choose OSFP if:
- Thermal headroom and sustained high-power performance are priorities
- You're building spine or hyperscale infrastructure
- You're future-proofing toward 800G-1.6T

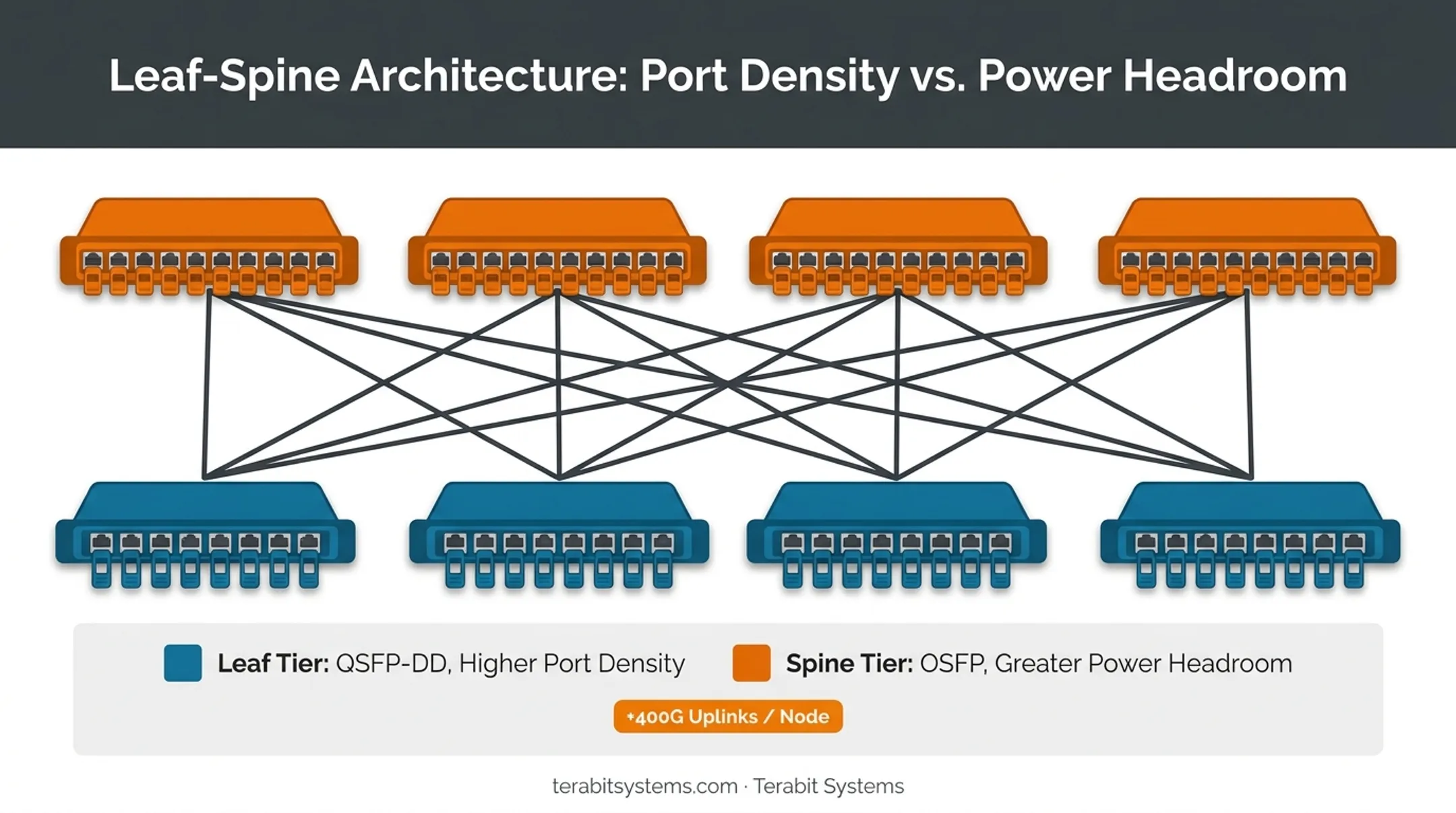

Many networks split the difference, running QSFP-DD at the leaf and OSFP at the spine to balance port density against sustained performance. Arista's own switch lineup supports this pattern directly, offering matched QSFP-DD and OSFP variants of the same chassis (like the DCS-7050DX4 and DCS-7050PX4).
Whichever form factor you choose, budget-conscious Tier-2 providers, ISPs, and enterprise IT teams don't have to pay OEM list price. Certified refurbished QSFP-DD and OSFP modules can lower upfront costs without sacrificing reliability.
Real-World Example: Choosing the Right Transceiver
A mid-sized hosting provider we've worked with faced a familiar squeeze: bandwidth demand climbing fast, capital budget staying flat. They needed to move to 400G at the leaf layer without a full infrastructure overhaul or the six-figure capex of new OEM optics.
New OEM QSFP-DD modules from their incumbent vendor came with a 16-week lead time. That timeline alone would have delayed their rollout by a full quarter.
Instead, they sourced tested, certified refurbished QSFP-DD modules, available immediately rather than months out. Their leaf switches already used QSFP-DD ports, so the modules dropped in with no hardware changes and no forced move to OSFP.
The result:
- Faster deployment than waiting on OEM supply
- Lower per-port cost versus new optics
- Same port density as new gear
Fully tested refurbished optics (not just resold stock) can deliver OEM-equivalent reliability at a fraction of the cost and lead time.
If you're planning a 400G or 800G upgrade, Terabit Systems stocks tested, warranty-backed QSFP-DD and OSFP modules from Arista, Juniper, and Cisco, backed by a 1-year replacement-or-refund guarantee.
Frequently Asked Questions
What are the key differences between 800G OSFP and 800G QSFP-DD transceivers?
Both use 8 lanes at 100G PAM4 per lane to hit 800G. OSFP offers more power and thermal headroom, while QSFP-DD keeps backward compatibility with existing QSFP28 infrastructure.
Can OSFP be used in large networks?
Yes. OSFP was specifically designed for hyperscale and cloud networks that need sustained high-power, high-speed performance at the spine and core layers.
What is an OSFP optic?
OSFP (Octal Small Form-factor Pluggable) is an optical transceiver format supporting 400G-800G today, with 1.6T on its roadmap, using 8 electrical lanes.
Is QSFP-DD backward compatible with QSFP28?
Yes. QSFP-DD ports accept QSFP28 modules directly, letting you upgrade gradually instead of replacing entire switches at once.
Which is more energy-efficient, QSFP-DD or OSFP?
QSFP-DD modules typically draw 12W–17W; OSFP modules usually draw about 14.5W–17W, though the OSFP shell can thermally support well over 30W. For high-density deployments, QSFP-DD generally wins on efficiency.
Should I buy new or refurbished QSFP-DD/OSFP modules?
Certified refurbished modules from reputable resellers offer significant savings with warranty-backed reliability—a practical choice for budget-conscious network expansions.
