Here's the challenge: online sources disagree. Some cite different EOL dates, others reference a notice that was reportedly issued and then walked back. That confusion makes planning harder than it should be.
This guide lays out the current, verifiable milestones, explains why the MX204 is being retired, and walks through your replacement and life-extension options.
Key Takeaways
- MX204 dates: EOL Announced June 15, 2026; Last Order June 15, 2027; End of Support June 30, 2032
- New MX204 chassis get harder to source through OEM channels as Last Order nears
- Migrate to the MX304, pivot to ACX/PTX, or extend life with refurbished units and spares
- Terabit Systems stocks refurbished Juniper MX Series hardware and buys back decommissioned units
Juniper MX204 EOL and EOS: The Official Dates
Juniper's public lifecycle matrix (TSB107750) lays out the full MX204 retirement schedule. According to the current M/MX Series hardware milestones page, the confirmed dates are:
- EOL Announced: June 15, 2026
- Last Order Date: June 15, 2027
- End of Hardware Failure Analysis: June 15, 2028
- End of Engineering: June 15, 2030
- Last Software Version: Junos 27.4
- End of Support (EOS): June 30, 2032
Note the discrepancy some readers may have seen elsewhere: several third-party sources cite June 15, 2032 as the EOS date. Juniper's current published record lists June 30, 2032. Use the official matrix as the source of truth over cached pages or reseller blogs.
Why the Timeline Seemed to Shift
SKU-transformation announcements — often tied to Junos Flex licensing changes — do not always mean the hardware itself is EOL. Juniper has updated MX204 lifecycle rows when those SKU moves landed, so older cached pages and forum posts still show dates that no longer match the live matrix.
EOL vs. EOS: The Practical Difference
These terms get used interchangeably, but they mean different things:
- End of Life (EOL): Juniper stops accepting new orders for the SKU. Existing deployments are unaffected.
- End of Support (EOS): Juniper stops providing bug fixes, security patches, and technical support entirely.
For the MX204, that leaves about five years between Last Order (2027) and End of Support (2032). That is enough time to plan a refresh, not enough to ignore the clock.
Where the MX204 Sits Among MX-Series Siblings
| Product | EOL Announced | Last Order | End of Support |
|---|---|---|---|
| MX80 | 06/30/2020 | 06/30/2026 | 06/30/2026 |
| MX104 | 09/30/2022 | 03/15/2023 | 03/15/2028 |
| MX240/480/960 | 06/30/2020 | 06/30/2021 | 06/30/2026 |
| MX204 | 06/15/2026 | 06/15/2027 | 06/30/2032 |
There is no single MX lifecycle formula. The MX104 had a short sales tail; the MX204 has the longest support runway in this set, which favors staged migration over a last-minute rip-and-replace.
Why Juniper Discontinued the MX204
Chipset and Component Considerations
The MX204 runs on Juniper's Trio chipset family for its forwarding, buffering, and queuing engine. Micron announced in 2018 that it was shifting away from its Hybrid Memory Cube (HMC) roadmap toward next-generation high-performance compute memory.
Industry discussion often links those two facts to MX-series retirements. That inference is plausible, but Juniper has not publicly tied the MX204's EOL to a specific memory component decision.
What is documented is Juniper's general EOL policy. Standard reasons for retiring a platform include:
- Technology innovation
- Market demand shifts
- Component obsolescence
Market Position During Its Lifecycle
The MX204 carved out a niche as an affordable, compact 100G entry point. It gave small-to-mid ISPs and regional providers a way to run full Junos routing without stepping up to a chassis-based platform. It competed in that compact-router category against boxes like the Nokia 7750 SR-1x and Arista's 7280R3 family, platforms with different port density and licensing models but similar rack-footprint appeal.
Replacement and Upgrade Paths
The Official Path: MX304
Juniper positions the MX304 as the direct successor. It's a bigger step up than a simple refresh:
- 2RU chassis (vs. MX204's 1RU)
- Dual routing engines for control-plane redundancy
- Up to 4.8Tbps throughput vs. MX204's 400Gbps

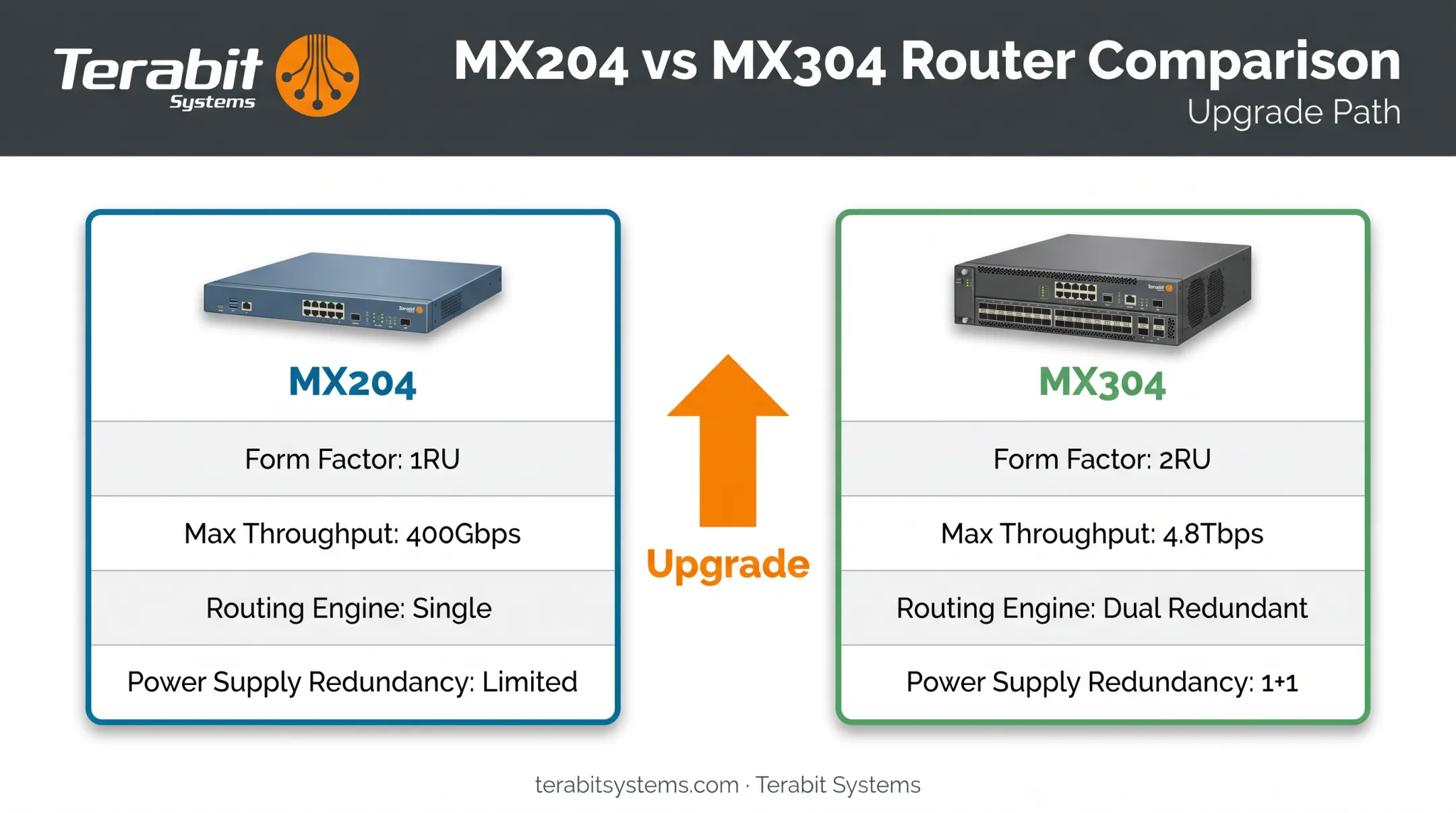

| Spec | MX204 | MX304 |
|---|---|---|
| Form factor | 1RU | 2RU |
| Max throughput | 400Gbps | 4.8Tbps |
| Routing engine | Single | Dual (1+1 redundant) |
| Power supply redundancy | Limited | 1+1 |
Alternative Juniper Platforms
Not every MX204 role needs an MX-series replacement:
- ACX7100-32C/48L — 1RU, 4.8Tbps metro platform, but advanced capabilities (EACX) require separate licensing
- ACX7024/7024X — Lower-scale access/metro router (360Gbps), a better fit for edge roles than a true MX204 capacity swap
- PTX10000 series — Core/transport-scale chassis, overkill for most MX204 use cases but relevant if you're consolidating into a packet-transport architecture
Some operators are also exploring disaggregated network operating systems on white-box hardware as a non-Juniper path. That's a bigger architectural shift and typically makes sense only for teams already running open networking elsewhere.
The Budget Reality
Here's the honest trade-off: the MX304 is a real capability jump, but it's priced like one. For Tier-2 ISPs and regional providers running MX204s in aggregation or CPE roles that don't need 4.8Tbps of headroom, that price jump can be hard to justify right now.
Refurbished MX204 units often make more sense as a bridge strategy—buying time until budgets or traffic growth catch up. Terabit Systems stocks tested, warrantied MX204s for operators who need to extend the platform without absorbing a full MX304 upgrade cost.
What EOL Means for Your Network Operations
EOL is a planning trigger for your MX204 fleet. Your MX204 units will keep passing traffic exactly as they do today. What changes is the safety net around them:
- No more firmware updates after End of Engineering (June 2030)
- Unpatched vulnerabilities accumulate once End of Support hits (June 2032)
- OEM replacement parts become harder to source as Juniper depletes remaining inventory
The good news: Juniper's support window runs through 2032. That's a long runway. No need to panic-migrate this year.

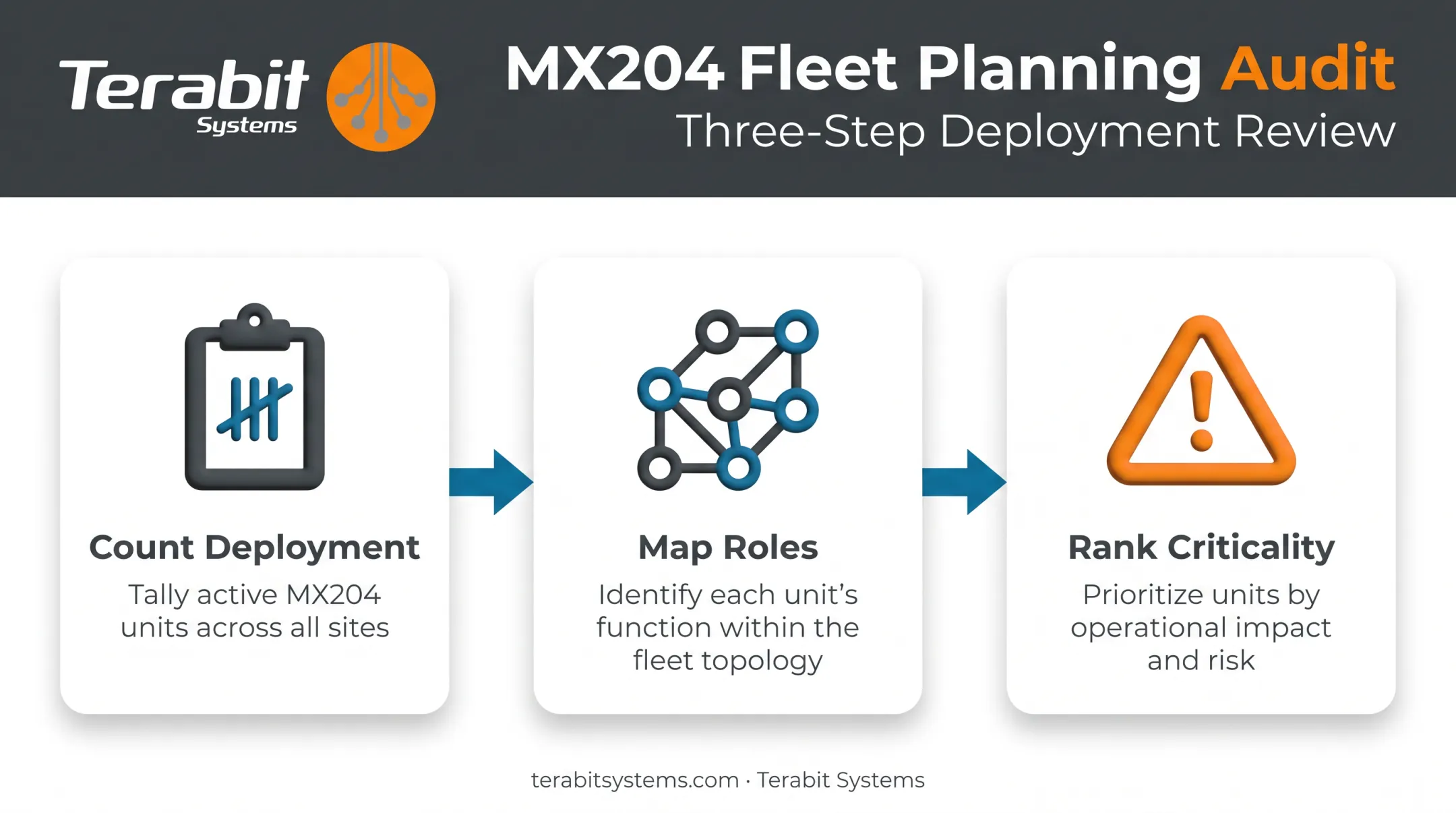

Before deciding whether to migrate, upgrade, or extend, run an internal audit:
- Count your MX204 deployment — how many units, across which sites?
- Map their roles — BGP edge, CPE, aggregation, or something else?
- Rank criticality — which units carry the most operational risk if they fail?
That audit tells you which units need MX304-grade continuity and which can run comfortably on refurbished hardware for a few more years.
Extending the Life of Your MX204 Investment
Once Last Order passes in 2027, new-unit availability through standard OEM channels dries up. The secondary market becomes the practical sourcing channel for spares, chassis, and line cards.

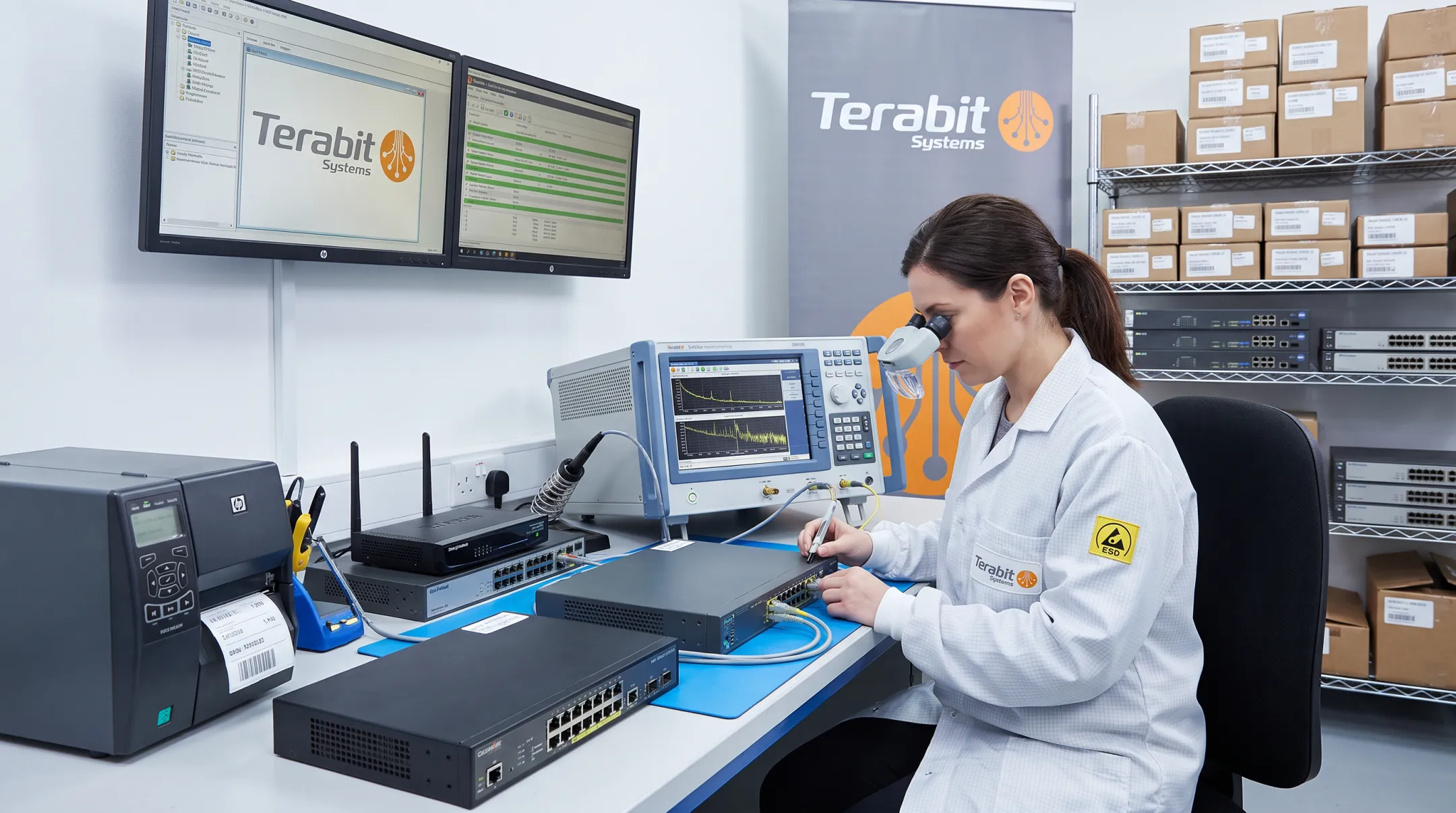

Terabit Systems stocks the Juniper MX204 within its broader MX Series catalog, offering an alternative to OEM lead times that can stretch well beyond a typical 16-week quote cycle. Every unit goes through a five-step quality assurance process before resale:
- Physical inspection of connectors, heat sinks, faceplates, and latches
- Log review for hidden error history
- Fan and power supply functional testing
- Wire-speed traffic testing through ports and optical transceivers
- Chassis-level module testing where applicable
Units are backed by a one-year replacement-or-full-refund warranty, with straightforward coverage if something goes wrong after delivery.
If you're upgrading to MX304 or pivoting to ACX/PTX, Terabit Systems' buyback program lets you recover value from decommissioned MX204 units instead of leaving them as dormant capital—and put that value toward your next platform.
Frequently Asked Questions
What is the system capacity of the Juniper MX204 router?
The MX204 delivers 400Gbps of throughput via 4 x 100GbE and 8 x 10GbE interface slots, backed by 32GB of default DDR4 memory in a compact 1RU chassis.
What are the current and suggested Junos OS releases for MX204?
Juniper's lifecycle matrix lists Junos 27.4 as the final supported software version for MX204. Check Juniper's official EOL bulletin and suggested-release guidance periodically, since recommendations shift over time.
What are the end-of-life milestones for Juniper products?
Juniper's standard lifecycle includes Last Order Date, End of Life Announcement, End of Engineering, and End of Support. Each milestone has its own timeline. Dates vary by product, so always check the specific platform's matrix.
What is the EOL date for the Juniper MX104 router chassis?
The MX104 EOL was announced September 30, 2022, with End of Support extending to March 15, 2028. Its sales tail was notably shorter than MX204's.
Can I still buy a Juniper MX204 after its End of Sale date?
Juniper won't sell new units after the Last Order date passes. Refurbished and pre-owned units remain available through specialized resellers like Terabit Systems.
Is the Juniper MX204 still safe to use after reaching EOL?
Yes. EOL doesn't mean immediate risk. Juniper continues technical support through June 2032. Operators should still plan migration well before that date.
