That confusion has real costs. Order the wrong module and you might lose optical diagnostics you didn't know you needed, or pay more than necessary chasing a part that's been end-of-sale for over a decade. Getting this right matters for network visibility, troubleshooting speed, and procurement budgets alike.
This guide breaks down the exact difference between these two transceivers, where each one fits, and what to consider when buying refurbished or compatible replacements.
TL;DR
- GLC-SX-MM is the legacy 1000BASE-SX SFP without DOM (Digital Optical Monitoring)
- GLC-SX-MMD is its direct successor, functionally identical except it adds DOM
- Both run at 1.25Gbps, 850nm, over multimode fiber with LC connectors
- Cisco announced end-of-life for GLC-SX-MM in March 2012, with GLC-SX-MMD as the official replacement
- GLC-SX-MMD is the default choice for virtually all deployments today

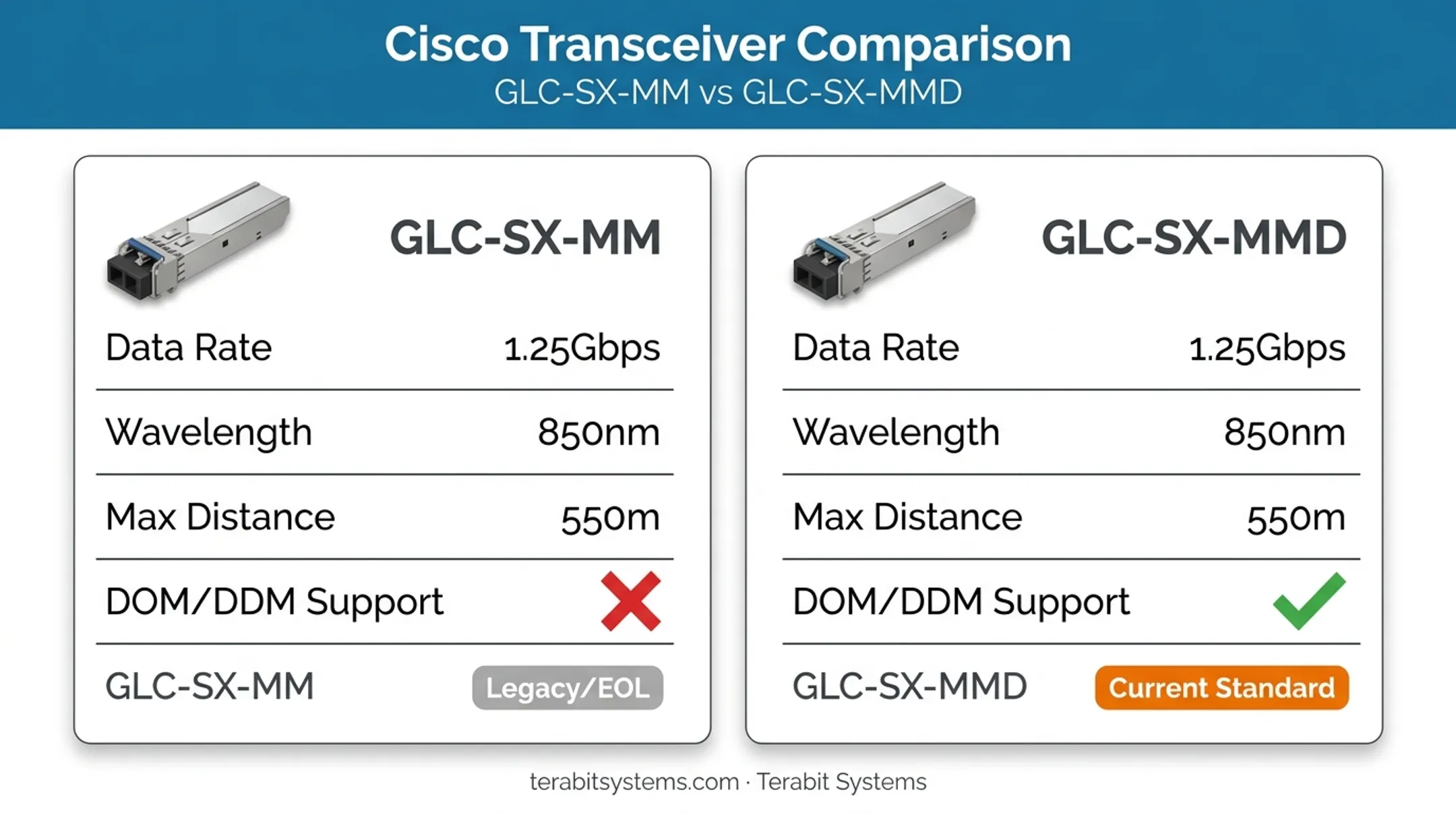

GLC-SX-MM vs GLC-SX-MMD: Quick Comparison
| Feature | GLC-SX-MM | GLC-SX-MMD |
|---|---|---|
| DOM/DDM Support | No | Yes |
| Data Rate | 1.25 Gbps | 1.25 Gbps |
| Wavelength | 850 nm | 850 nm |
| Max Distance | Up to 550 m (OM3 MMF) | Up to 550 m (OM3 MMF) |
| Lifecycle Status | End-of-sale; legacy stock only | Current standard part |
| Availability | Limited; refurbished/used | Widely available new and refurbished |
Optical and reach specs match. The real split is DOM/DDM monitoring plus lifecycle: GLC-SX-MM is end-of-sale legacy stock, while GLC-SX-MMD is the current drop-in with digital diagnostics.
What Is GLC-SX-MM?
GLC-SX-MM is Cisco's original 1000BASE-SX short-wavelength SFP module, also produced by third-party compatible vendors under the same designation. It's a multimode transceiver for short-range Gigabit Ethernet, typically 850 nm over MMF with reaches up to about 550 m on common OM2/OM3 plant.
The catch: it has no DOM capability. Network admins can't pull real-time voltage, temperature, or optical power readings from the module itself. If the link degrades, you're troubleshooting blind, checking cables and ports rather than reading the optic's own health data.
Cisco moved GLC-SX-MM to end-of-life status in its 2012 GE SFP announcement, with an end-of-sale date of March 8, 2013 (Cisco's EOL bulletin). Last ship was June 2013; Cisco support ended March 2018.
Where You'll Still Find GLC-SX-MM
- Legacy Cisco switches and routers on older hardware generations
- Maintain-only networks that refresh parts instead of expanding
- Designs that never required DOM visibility on the optic
What Is GLC-SX-MMD?
GLC-SX-MMD is the DOM-enabled successor to GLC-SX-MM. Cisco's current data sheet lists it as a 1000BASE-SX module with the same 1.25Gbps, 850nm, LC-connector profile, just with monitoring added on top.

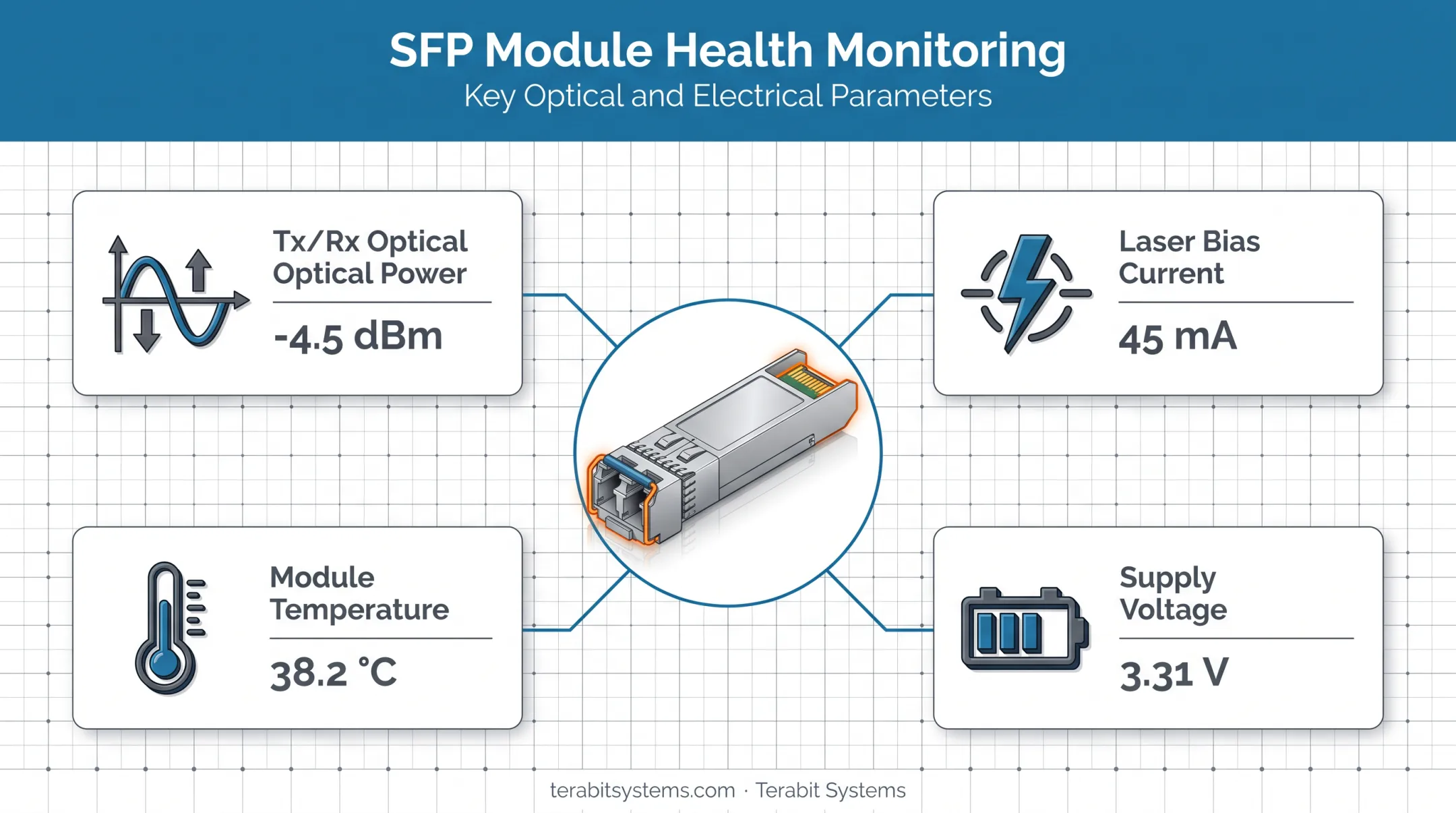

The "D" stands for Digital Optical Monitoring. It gives engineers a live readout of:
- Tx/Rx optical power
- Laser bias current
- Module temperature
- Supply voltage
Cisco describes this diagnostic layer as a tool for proactive monitoring and troubleshooting. Instead of pulling a module to test it physically, you can check its vitals remotely and catch a failing laser before it takes a link down.
Where GLC-SX-MMD Is Standard
- Top-of-rack connections in current data center builds
- Enterprise LAN switch uplinks and campus distribution layers
- Any refresh or new install, since Cisco has shipped this as the default 1000BASE-SX part for over a decade
No authoritative source publishes a specific percentage reduction in troubleshooting time from DOM alone. The practical benefit is the diagnostic visibility itself, not a marketed statistic.
GLC-SX-MM vs GLC-SX-MMD: Which Should You Choose?
Three factors decide GLC-SX-MM vs GLC-SX-MMD for most buyers:
- Hardware generation — Even on chassis that originally shipped with GLC-SX-MM, MMD works as a drop-in replacement.
- Need for diagnostics — If you want optical health data without pulling modules, MMD is the only option.
- Availability — GLC-SX-MM is increasingly scarce; MMD is the current standard part.
GLC-SX-MMD is the right call for nearly every purchase today. GLC-SX-MM is functionally obsolete. DOM is now a baseline feature, and many vendors ship DOM-enabled optics under both part numbers anyway—so default to MMD unless a legacy BOM locks you to the older code.
Buying Refurbished or Compatible GLC-SX-MMD Modules
New OEM pricing on Cisco optics adds up fast, especially across dozens of switch ports. Refurbished or compatible GLC-SX-MMD modules deliver the same 1000BASE-SX performance at a fraction of the cost. The key is proper testing before deployment.

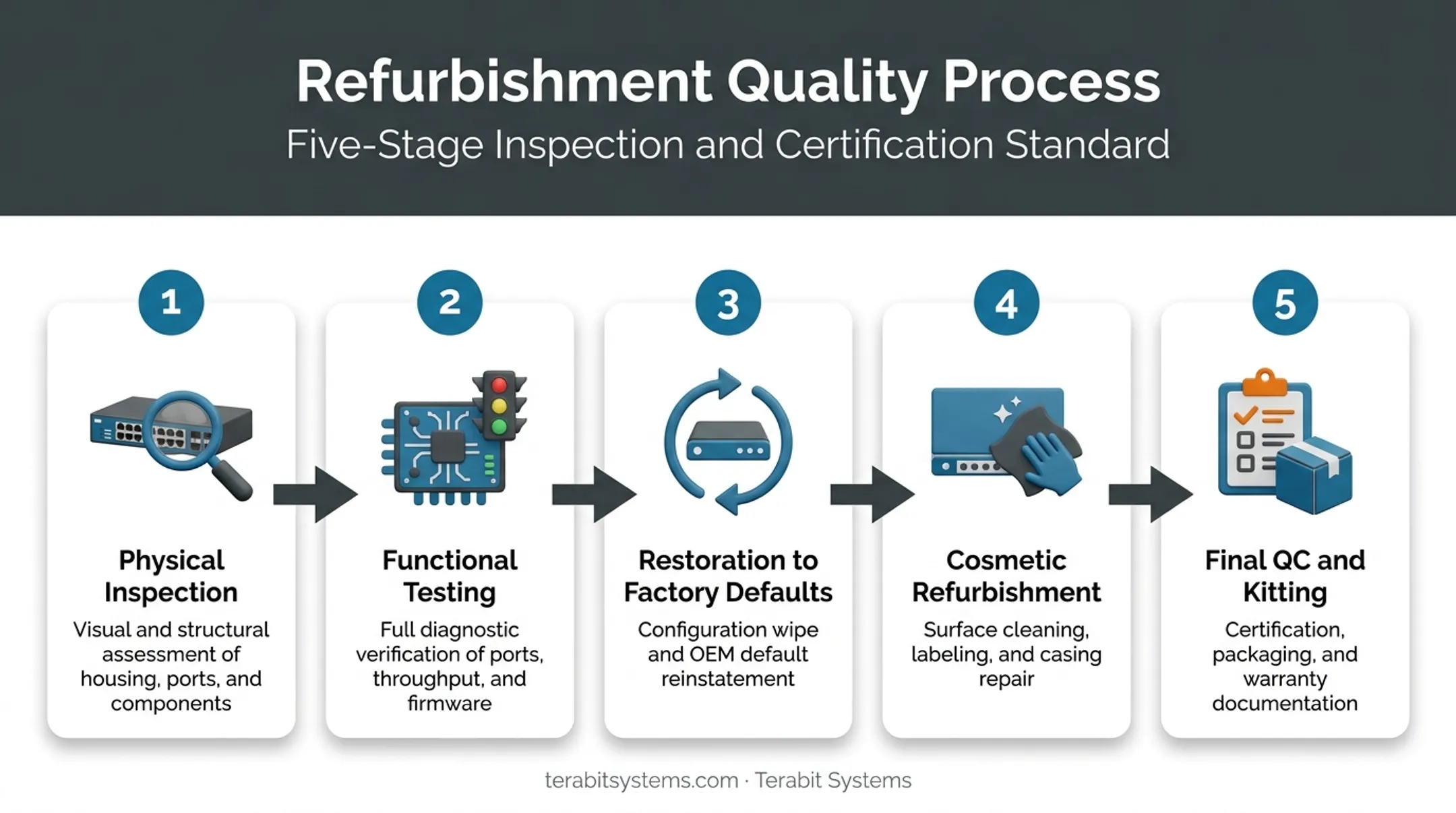

At Terabit Systems, every optic goes through a 5-step quality control process:
- Physical inspection
- Functional testing, including optical transceiver traffic testing
- Restoration to factory defaults
- Cosmetic refurbishment
- Final quality control and kitting
Every unit ships with a 1-year Bullet Proof warranty, covering replacement or full refund if something fails.
Warranty coverage helps after the fact—a short pre-deployment checklist still protects uptime:
- Confirm vendor coding matches your Cisco platform to avoid firmware rejection
- Verify DOM readings are accurate, not just present
- Ask for documentation on the vendor's testing process
Frequently Asked Questions
What is the difference between GLC-SX-MM and GLC-SX-MMD?
The only functional difference is DOM support in GLC-SX-MMD. Speed, wavelength, and distance specs are identical across both modules.
What is GLC-SX-MMD?
It's a 1Gbps multimode SFP module with Digital Optical Monitoring, used for short-range Cisco Ethernet connectivity up to 550m on OM3 fiber.
Is GLC-SX-MM multimode?
Yes. It uses multimode fiber (MMF) at 850nm, with reach up to 550m on OM3 cable.
Is GLC-SX-MMD 1G or 10G?
It's a 1Gbps (1000BASE-SX) module. Don't confuse it with 10G SFP+ optics like SFP-10G-SR, which use a different form factor and speed.
What is the difference between GLC-SX-MMD and GLC-LH-SMD?
GLC-SX-MMD is multimode and short-reach (850nm, 550m). GLC-LH-SMD is single-mode and long-reach (1310nm, up to 10km). They serve very different distance requirements.
Can I mix GLC-SX-MM and GLC-SX-MMD on the same link?
Yes. Cisco confirms these modules are compatible when used with the correct multimode patch cable and backbone. Only the MMD side will report DOM diagnostics.
