SFP and SFP+ transceivers look nearly identical. Both snap into the same size cage on switches, routers, and servers. But they're built for different jobs, and mixing them up can mean a dead link, a bottlenecked network, or a wasted purchase order.
This guide breaks down speed, compatibility, reach, and cost so you know exactly which module fits your network, whether you're buying new or sourcing refurbished gear to stretch your budget.
TL;DR
- SFP handles Gigabit Ethernet (up to 1.25 Gbps), with some Fibre Channel variants
- SFP+ handles 10 Gbps Ethernet plus 8G/16G Fibre Channel
- Same size, one-way compatibility: SFP+ ports take SFP modules at reduced speed; SFP ports reject SFP+
- SFP+ is standard for data center uplinks; SFP still covers legacy 1G and budget builds
SFP vs SFP+: Quick Comparison
Speed
- SFP: up to 1.25Gbps for Gigabit Ethernet; select Fibre Channel variants reach the 4-Gbps class
- SFP+: 10Gbps Ethernet, based on the SFF-8431 electrical spec, plus 8G and 16G Fibre Channel families
Nominal Fibre Channel labels don't always match actual line rates. Check the exact SKU datasheet rather than assuming every "4G" label means the same thing.
Compatibility
- SFP modules can run in supported SFP+ ports, but only at 1G — the port doesn't magically upgrade the module's speed
- SFP+ modules will not operate in SFP-only ports. Cisco documentation confirms its SFP-1G-T-X module works only in 10G-capable ports and won't function in 1G-only slots
This is a one-way relationship: fitting a module into a port does not guarantee it will operate. Always check your platform's optics compatibility matrix.

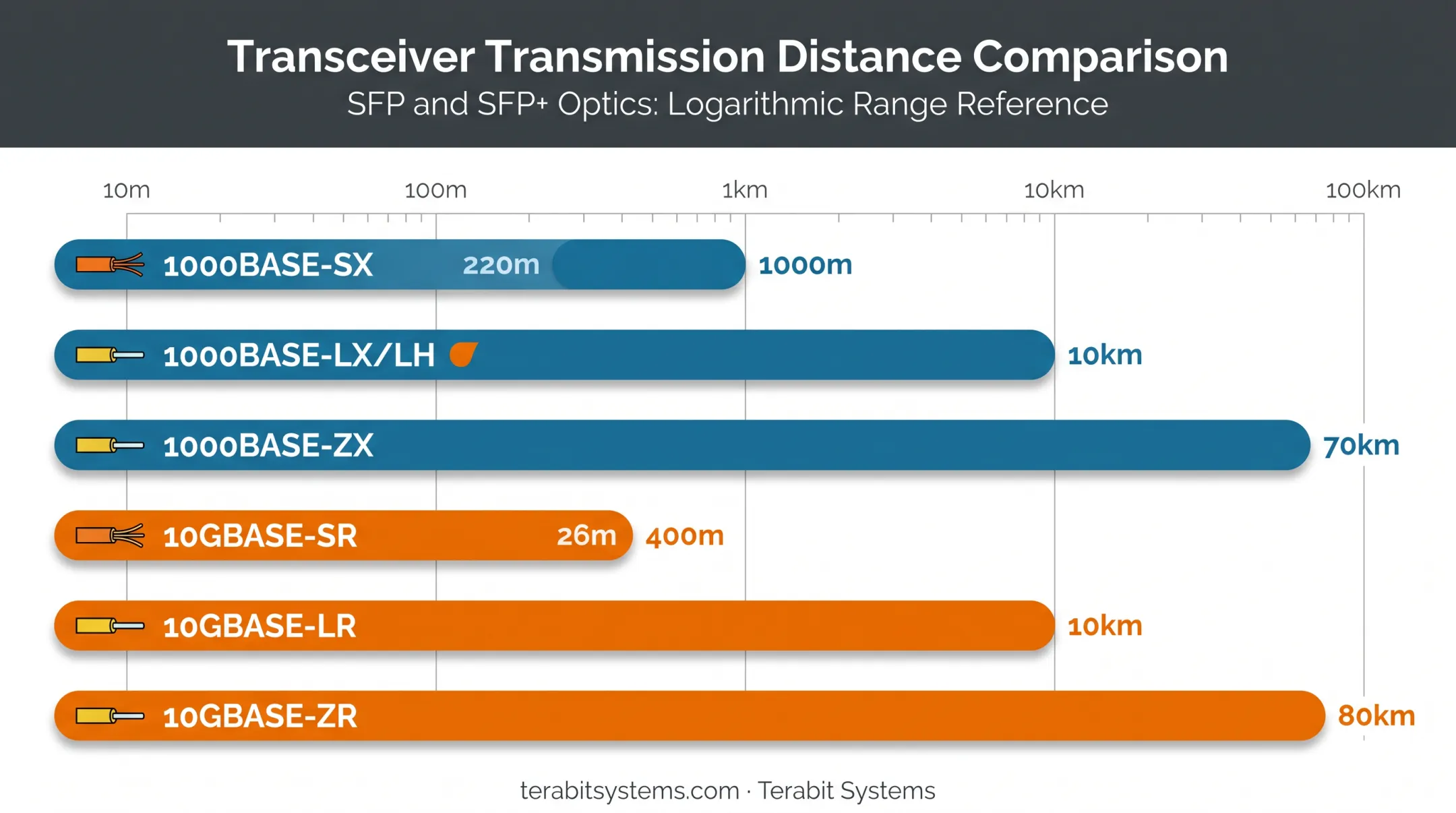

Transmission Distance
| Module | Typical Reach |
|---|---|
| 1000BASE-SX (SFP) | 220m–1,000m depending on fiber grade |
| 1000BASE-LX/LH (SFP) | Up to 10km on single-mode |
| 1000BASE-ZX (SFP) | ~70km on single-mode |
| 10GBASE-SR (SFP+) | 26m–400m depending on fiber grade |
| 10GBASE-LR (SFP+) | 10km minimum |
| 10GBASE-ZR (SFP+) | ~80km |
Standards & Specification
The original SFP form factor comes from the SFF MSA. SFF-8472 covers management and diagnostics monitoring, while SFP+ electrical specs live in SFF-8431 and mechanical specs in SFF-8432.
Typical Cost
Pricing varies widely by coding, reach, and condition. OEM list prices for reference:
- Juniper SFP-1GE-FE-E-T (10/100/1000 SFP): $395 MSRP
- Juniper SFPP-10GE-ZR (80km SFP+): $14,000
- Brocade 10GBASE-ZR Tunable SFP+: $19,900
Short-reach 10G SFP+ optics and refurbished 1G SFPs cost far less than those long-haul specialty modules. Condition and coding matter more than form factor alone when comparing prices.

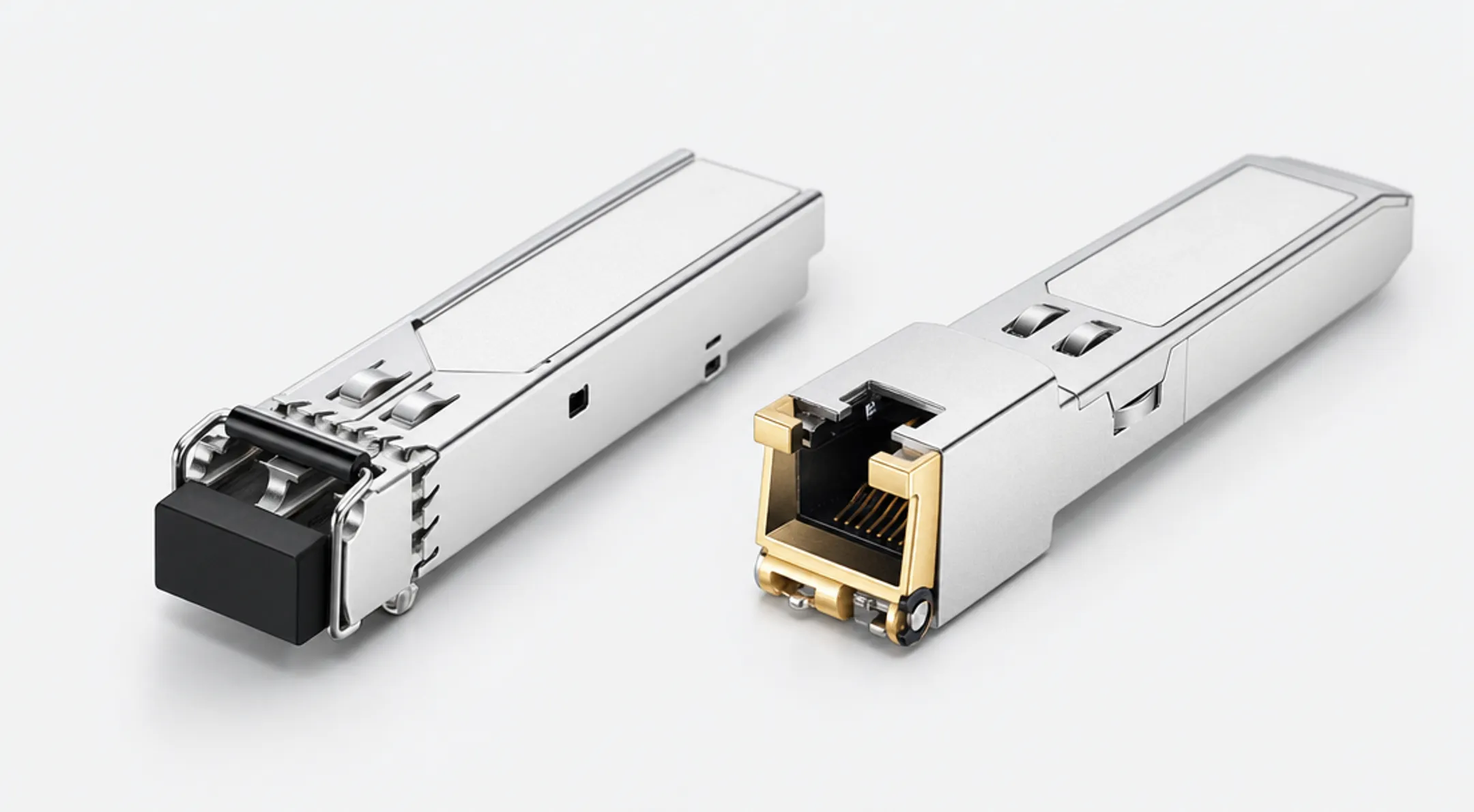

What is SFP?
SFP (small form-factor pluggable) is a compact, hot-swappable transceiver that adds fiber or copper ports to existing switches and routers without ripping out hardware. It supports Ethernet, Fibre Channel, and SONET, topping out around 1.25 Gbps for standard Ethernet applications.
Common subtypes include:
- Single-mode and multimode fiber variants for different distance needs
- BiDi modules that transmit and receive on one strand of fiber
- CWDM/DWDM for wavelength-multiplexed long-haul links
The Juniper EX-SFP-1GE-T is a 1000Base-T copper transceiver still in wide use today. The EX-SFP-1GE-SX is a multimode optic rated for 550-meter links.
Use Cases of SFP
SFP remains common in:
- Legacy enterprise LANs and branch office connections
- Lower-bandwidth WAN links where 1G is plenty
- Older Cisco, Juniper, and Arista switches still doing productive work
- Cost-conscious Tier-2 ISPs on non-critical 1G segments where a 10G upgrade isn't worth it yet
What is SFP+?
SFP+ is the enhanced version of the SFP form factor, built to push 8G, 10G, and even 16G Fibre Channel speeds through the identical footprint. It adds built-in DDM/DOM monitoring so engineers can watch signal strength and temperature without pulling the module.
Subtypes include:
- Direct-attach copper (DAC) cables for short in-rack runs — the Juniper EX-SFP-10GE-DAC-1M is a 1-meter example built for switch-to-server links
- Active optical cables (AOC) for longer in-row or inter-rack links where copper reach falls short
- Fiber variants: SR, LR, ER, and ZR, each suited to a different distance

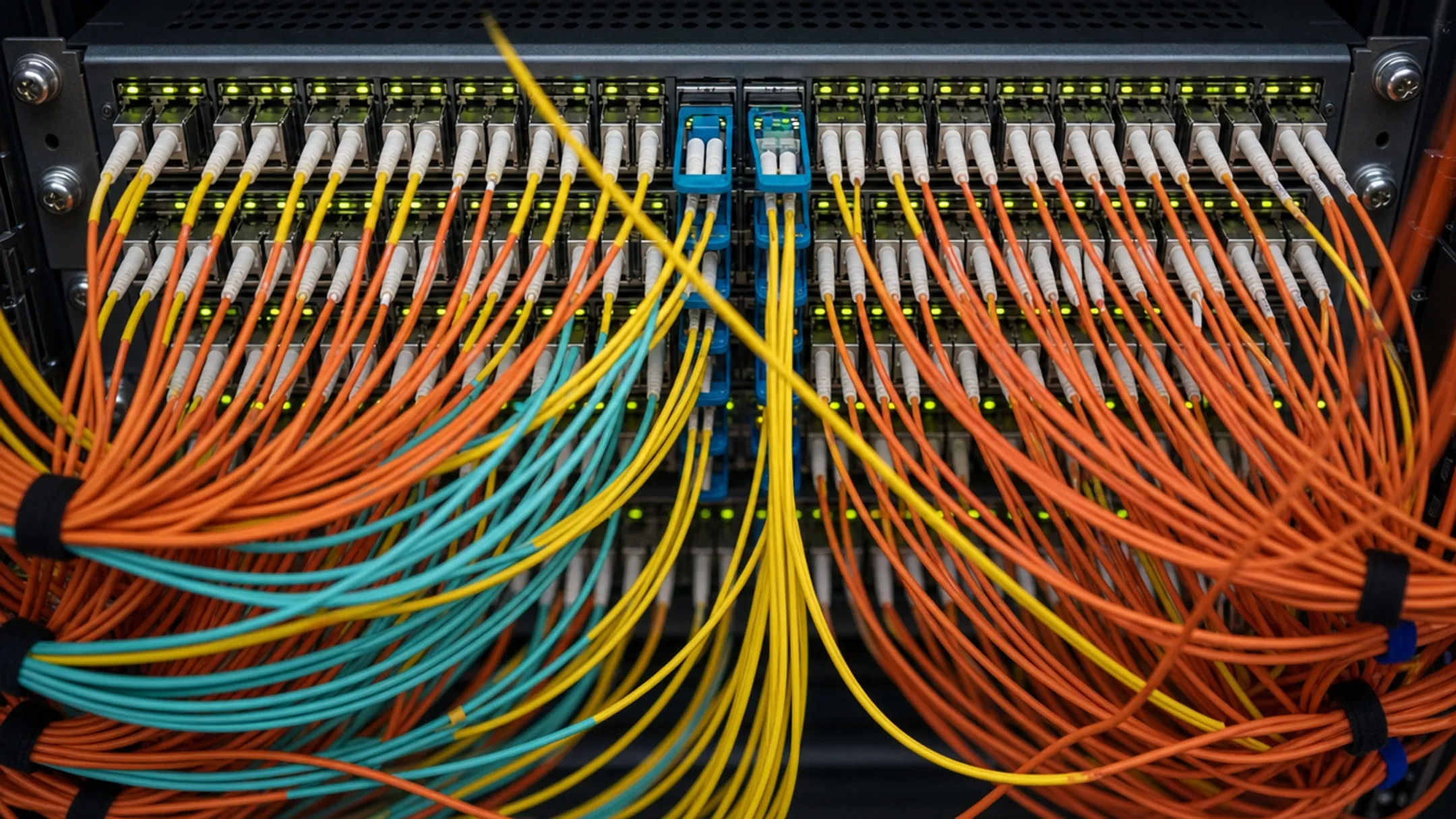

Use Cases of SFP+
SFP+ dominates:
- Data center top-of-rack switching — the Cisco Nexus 3064-E packs 48 fixed SFP+ ports with QSFP+ uplinks for exactly this role
- High-density server interconnects, like the Arista DCS-7050SX3, built for 10/25GbE server connectivity with 100GbE uplinks
- Regional ISPs and Tier-2 cloud providers scaling networks affordably with used Arista, Juniper, or Cisco gear
That footprint is still the workhorse speed in many plants. Omdia's 2Q21 Data Center Ethernet Switch Tracker found that 10GE represented 20% of ports and 12% of revenue across data center switching. By then, 10G — and SFP+ with it — was already the baseline, not the upgrade.

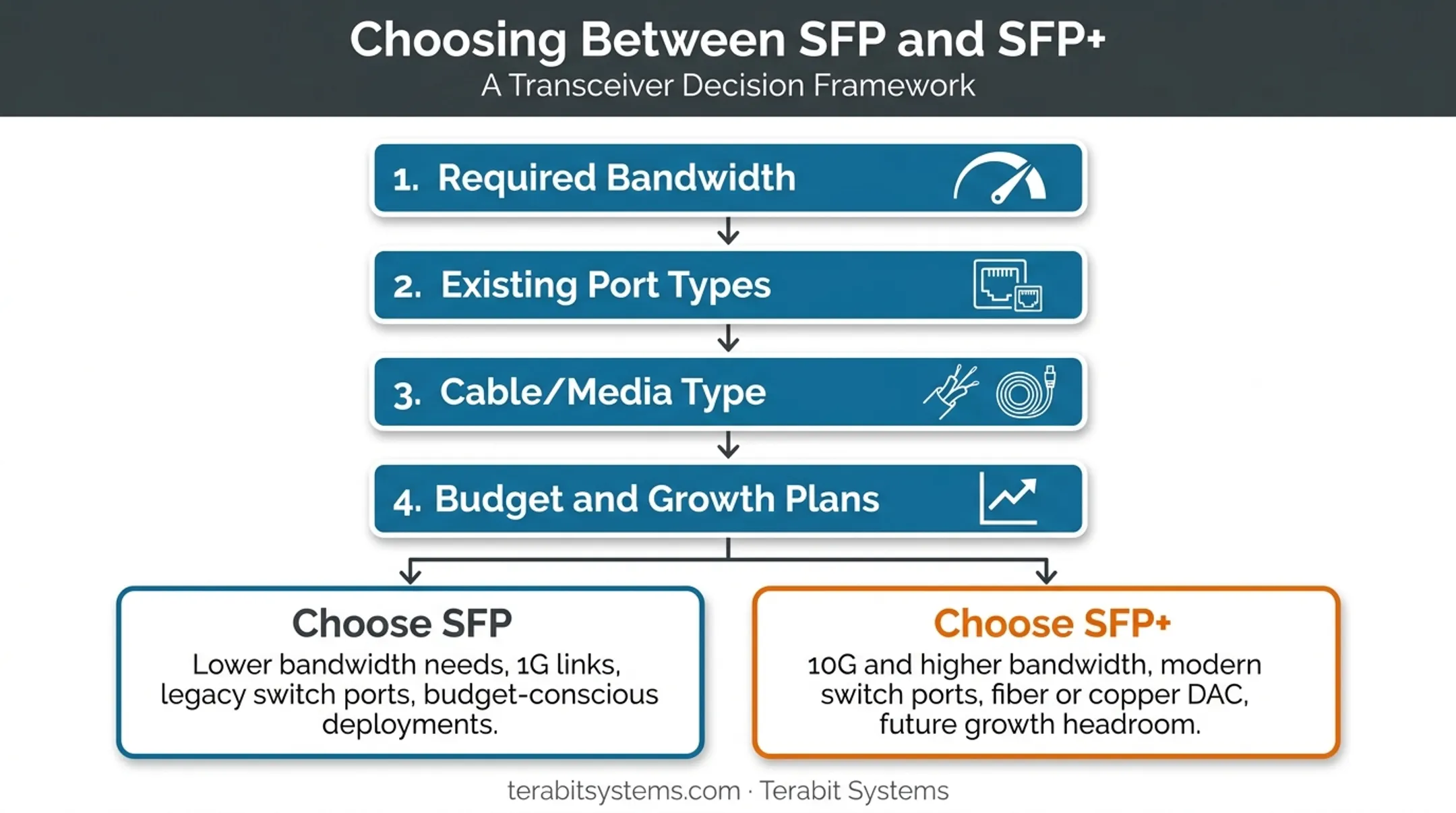

SFP vs SFP+: Which Should You Choose?
Match your choice to four practical factors:
- Required bandwidth — do your workloads actually need 10G, or is 1G still enough?
- Existing port types — check whether your switches have SFP-only or SFP+ capable cages
- Cable/media type — copper, multimode fiber, or single-mode changes your module options
- Budget and growth plans — buying SFP+ hardware now can save a forklift upgrade later
Once those four are clear, the pick is usually straightforward:
Choose SFP if you only need 1G speeds or you're maintaining legacy SFP-only hardware that isn't due for replacement.
Choose SFP+ if you need 10G throughput now, or you're building infrastructure that needs headroom for the next few years.
If you're replacing aging switches or scaling a growing network, Terabit Systems sources certified refurbished SFP and SFP+ modules alongside compatible switches from Arista, Juniper, Cisco, and Extreme.
Every unit goes through a 5-step quality assurance process and ships with a 1-year "Bullet Proof" warranty, so compatibility is verified before the gear leaves the dock.
Frequently Asked Questions
What does SFP+ mean?
SFP+ stands for Small Form-Factor Pluggable Plus — an enhanced version of SFP that supports up to 10Gbps while keeping the same physical size as the original module.
How does SFP+ compare to RJ45 (copper) and fiber?
SFP+ supports both copper (via 10GBASE-T modules or DAC cables) and fiber optics, while a fixed RJ45 port is copper-only. SFP+ gives you flexibility to change media types without replacing the switch.
Can I plug an SFP module into an SFP+ port?
Yes, most SFP+ ports accept SFP modules, but they'll only run at 1G speed, not 10G. Check your platform's compatibility matrix first.
Can an SFP+ module work in an SFP-only port?
No. SFP+ transceivers need the SFP+ high-speed electrical interface. They won't function or downshift in a standard SFP-only slot.
Is SFP+ more expensive than SFP?
Generally yes, since SFP+ supports higher speeds and often includes DDM/DOM monitoring. Refurbished modules can significantly close that price gap.
Which is better for a data center: SFP or SFP+?
SFP+ wins for data centers needing 10G+ throughput and lower latency. SFP can still handle legacy or lower-bandwidth segments where 1G is sufficient.
