Pick the wrong one and you're looking at wasted budget, failed links, or a network that can't scale when you need it to. This guide breaks down cost, fiber compatibility, distance, and real-world use cases so you can order the right module the first time.
TL;DR
- 1000BASE-SX runs at 850nm over multimode fiber, reaching up to 550m on OM2 and 1,000m on OM3/OM4
- 1000BASE-LX runs at 1310nm over single-mode fiber (up to 10km) or multimode with a mode-conditioning patch cord
- Both comply with IEEE 802.3z and operate at a 1.25 GBd signaling rate
- Choose based on existing fiber type and the distance between endpoints
1000BASE-SX vs 1000BASE-LX: Quick Comparison
| Factor | 1000BASE-SX | 1000BASE-LX |
|---|---|---|
| Cost | Lower ($500-$525 MSRP typical) | Higher ($995-$1,150 MSRP typical) |
| Wavelength | 850nm | 1310nm |
| Fiber type | Multimode only | Single-mode primary; multimode with mode-conditioning patch cord |
| Max distance | Up to 1,000m on OM3/OM4 | Up to 10km on single-mode |
| Dispersion sensitivity | Modal + chromatic dispersion | Chromatic dispersion only (no modal dispersion on SMF) |
| Typical use | In-building, data center | Campus backbone, building-to-building |
Cost
Based on manufacturer MSRPs, Juniper's SFP-1GE-SX lists around $500 versus $995 for the SFP-1GE-LX — roughly a 99% premium for LX. Brocade's comparable modules widen the gap further: $525 for SX versus $1,150 for LX, or $625 more per module. Across a rack of switches, that difference adds up quickly.
Wavelength & Fiber Type
SX runs at 850nm on multimode only (OM1 through OM4). LX runs at 1310nm on single-mode by design, and can also run on multimode when you add a mode-conditioning patch cord.
Maximum Distance
- 1000BASE-SX: 275m on OM1, 550m on OM2, up to 1,000m on OM3/OM4
- 1000BASE-LX: Up to 10km on single-mode fiber; up to 550m on multimode with proper mode conditioning
Dispersion Characteristics
Multimode fiber suffers from both modal and chromatic dispersion, which is why SX distances shrink on lower-grade fiber. Single-mode fiber eliminates modal dispersion entirely since it carries only one light path, though chromatic dispersion still applies to both fiber types.
Typical Applications
- SX: Server-to-switch links, top-of-rack connections, intra-building runs
- LX: Building-to-building backbones, wiring closet uplinks, metro connections
What is 1000BASE-SX?
1000BASE-SX is the short-wavelength Gigabit Ethernet standard defined under IEEE 802.3z, built for multimode fiber. It transmits at 850nm and delivers a lower-cost, lower-power alternative for short-range, high-density links.
Its biggest advantage isn't raw distance; it's economics. Multimode transceivers and LED-based optics cost less to manufacture than the laser components required for single-mode LX modules. That translates directly into savings when you're outfitting dozens or hundreds of ports.

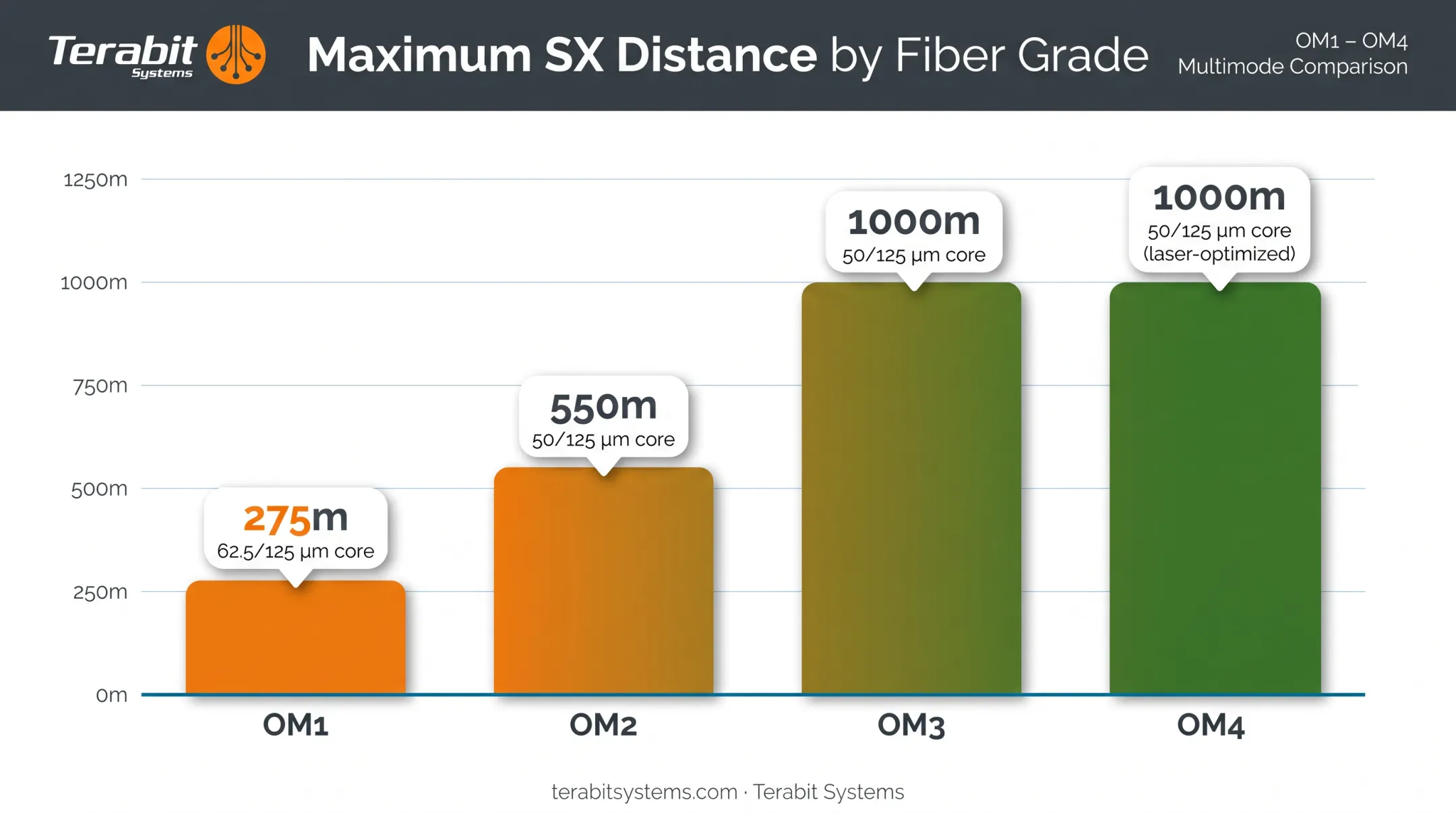

Distance depends heavily on fiber grade:
- OM1 (62.5μm core): 275m
- OM2 (50μm core): 550m
- OM3 (laser-optimized 50μm): up to 1,000m
- OM4 (higher bandwidth 50μm): up to 1,000m
Upgrading from OM1 to OM3 fiber roughly quadruples your usable SX distance without touching the transceiver itself. That's worth knowing before you assume SX "won't reach" your target link.
Use Cases of 1000BASE-SX
SX shows up everywhere short-haul connectivity is needed:
- LAN switch-to-switch links within the same floor or building
- Intra-building cabling in colocation facilities
- Carrier-neutral internet exchanges where equipment sits in adjacent racks
- Server-to-switch connections in data center rows
Budget-conscious teams often source refurbished switches with SX ports from brands like Cisco, Juniper, and Arista. That approach cuts hardware spend versus new OEM gear and is common among tier-2 cloud and hosting operators building out short-haul links.
What is 1000BASE-LX?
1000BASE-LX is the long-wavelength counterpart, transmitting at 1310nm. It's designed primarily for single-mode fiber, reaching up to 10km, but it can also run over multimode fiber up to 550m when paired with a mode-conditioning patch cord.
Fewer intermediate switches and repeaters mean lower total infrastructure cost on sites spread across multiple buildings or floors. If your campus has a main distribution frame connecting several wiring closets, LX is almost always the default choice for those uplinks.

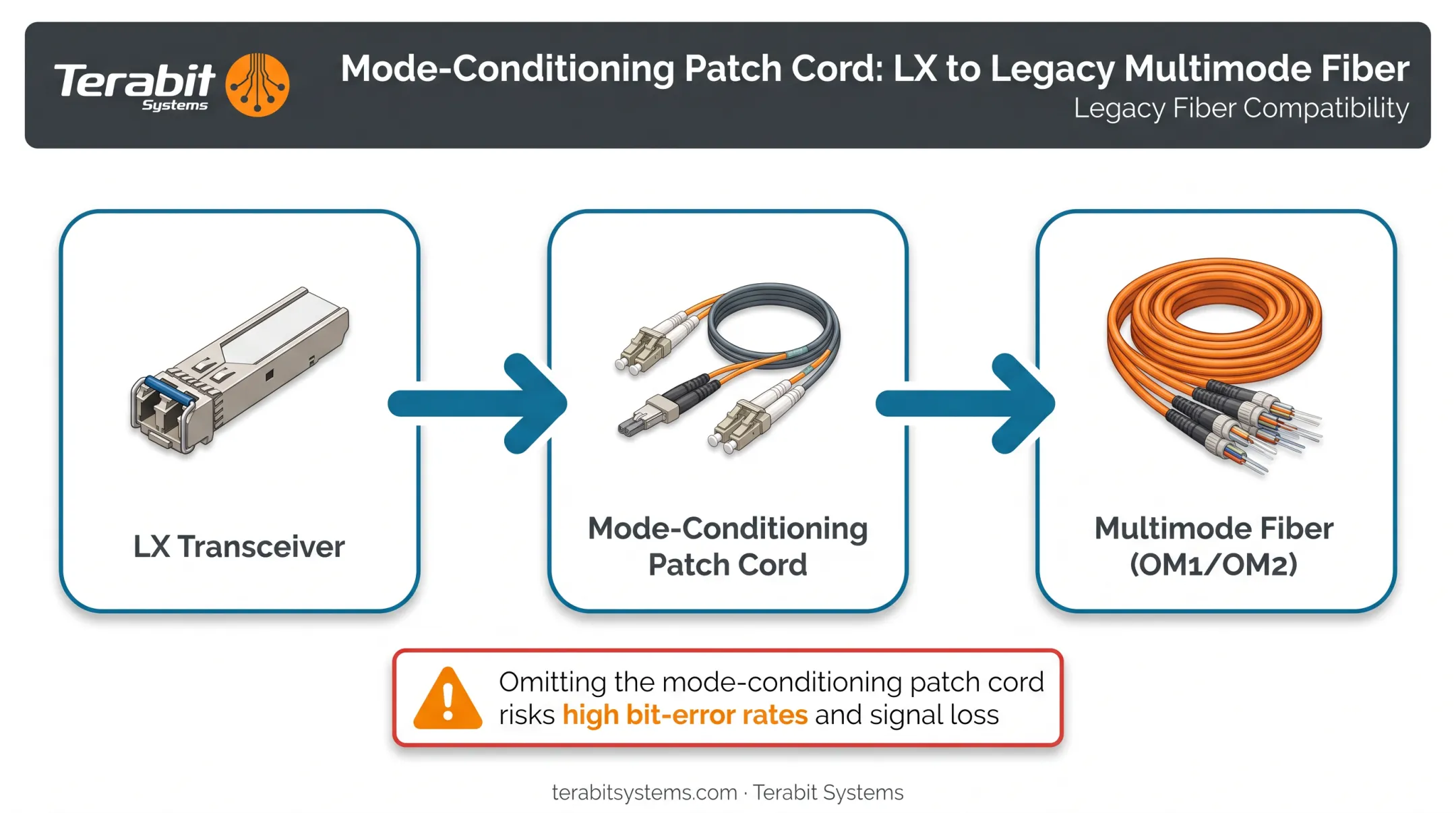

A critical installation detail
Mode conditioning isn't optional where it's required. Cisco's own guidance states that legacy multimode fiber (FDDI-grade, OM1, OM2) needs a mode-conditioning patch cord when paired with LX optics.
Skip it and you risk overloading the receiver, high bit-error rates, link flapping, or even permanent damage. This requirement doesn't apply to OM3 fiber or to SX links at all, so don't assume one rule fits every scenario.
Use Cases of 1000BASE-LX
LX is the standard pick for:
- Campus backbone links connecting buildings or distant wiring closets
- Metro-area connections between nearby facilities
- WAN links between regional ISP nodes and central offices
Triple-play and regional ISPs delivering bundled TV, phone, and internet often need affordable long-reach optics without paying OEM list price on every port. Refurbished Juniper or Cisco LX modules let those operators extend coverage while keeping capital free for customer-facing builds.
1000BASE-SX vs 1000BASE-LX: Which Should You Choose?
Run through these deciding factors before ordering:
- What fiber is already installed? Multimode plant points to SX (or LX with mode conditioning). Single-mode plant means LX is your only real option.
- How far is the link? Anything under 550m on good multimode fiber favors SX on cost alone. Beyond that, or on single-mode, LX wins.
- What's the budget? SX modules typically cost roughly half of LX equivalents, sometimes less.
- Will this network grow? If future links might exceed 550m, standardizing on LX now avoids a costly recabling later.
Golden rule: Never mix SX and LX on the same link. They operate at different wavelengths over different fiber types, and one end simply won't detect a signal from the other. Both ends need matching transceiver types and matching fiber. No exceptions.
How Terabit Systems Helps You Source the Right Transceiver
Matching the right optic to your fiber plant shouldn't require paying OEM list price. Terabit Systems supplies rigorously tested, refurbished SX and LX SFP modules across Cisco, Juniper, Arista, and Brocade at a fraction of new-equipment cost.

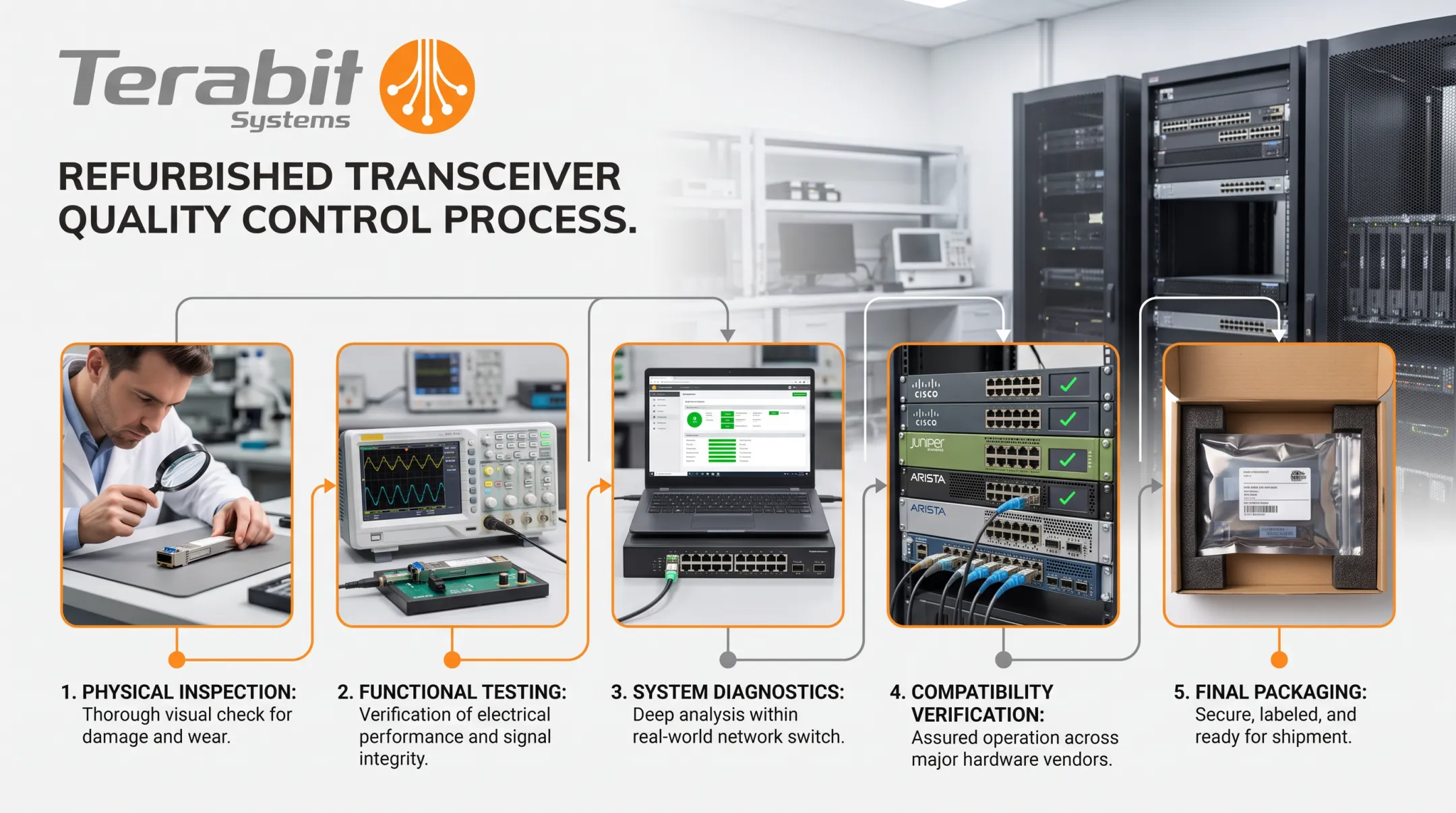

Every module goes through a five-step quality process before it ships:
- Physical inspection for connector or component damage
- Functional testing with live traffic passed through the transceiver
- System-level diagnostics where applicable
- Coding and compatibility verification on major OEM platforms
- Final cleaning, kitting, and packaging
Every transceiver ships with a 1-year replacement or full refund guarantee. If a module fails within that window, Terabit Systems replaces it at no cost or issues a refund up to the original purchase price.
If you're retiring outdated SX or LX equipment during an upgrade, Terabit Systems also offers a free surplus gear audit and buy-back option, so you can recover value from decommissioned optics and switches instead of leaving them unused.
Conclusion
Neither 1000BASE-SX nor 1000BASE-LX is universally better. The right optic depends on your fiber plant and distance needs. SX wins on cost for short, in-building, and data center links where multimode fiber is already in place. LX earns its higher price when you need to cross buildings, campuses, or runs beyond 550m.
Get the decision right and you avoid the two most common fiber mistakes: overspending on reach you don't need, or underspending on distance you can't hit. Match the optic to the plant, verify both ends before you order, and the link will perform as designed.
Frequently Asked Questions
What is the difference between SX and LX fiber?
SX uses multimode fiber at 850nm for short-distance links, typically up to 550 m. LX uses single-mode fiber (or multimode with a patch cord) at 1310nm for distances up to 10 km.
What is the difference between 1000BASE-LX and 1000BASE-SX?
LX offers longer reach and single-mode compatibility at a higher cost; SX is cheaper but limited to shorter multimode runs. Both meet IEEE 802.3z and run at 1.25 GBd.
Which uses multimode fiber, SX or LX?
SX is designed specifically for multimode fiber. LX primarily uses single-mode but can run over multimode with a mode-conditioning patch cord.
What does SX mean on SFP?
"SX" stands for short wavelength, referring to the 850nm optic built for short-range multimode transmission.
Can I connect a 1000BASE-SX module to a 1000BASE-LX module?
No. The wavelengths and fiber type requirements don't match. Both ends of a link must use the same transceiver type.
How far can 1000BASE-LX transmit over single-mode fiber?
The standard reach is up to 10 km, though this depends on the specific vendor module and fiber quality.
