Picking incorrectly isn't a minor inconvenience. Overspend on LR when SR would do the job, and you've wasted budget on precision optics you didn't need. Use SR where LR belongs, and you get a complete connection failure, not just a slower one.
This guide breaks down the technical differences between SFP-SR and SFP-LR, where each one fits, and how to choose correctly the first time — plus how buying refurbished can meaningfully cut the cost of getting it right.
Key Takeaways
- SFP-SR runs at 850nm over multimode fiber, capped around 300-400m for short data center runs
- SFP-LR uses 1310nm over single-mode fiber and reaches up to 10km on campus and backbone links
- SR and LR are not interoperable; mismatched pairs cause total link failure, not degraded performance
- LR modules cost significantly more due to precision optics—expect roughly 167% more than SR pricing
- Refurbished SR/LR modules from Terabit Systems carry a 1-year replacement or refund guarantee

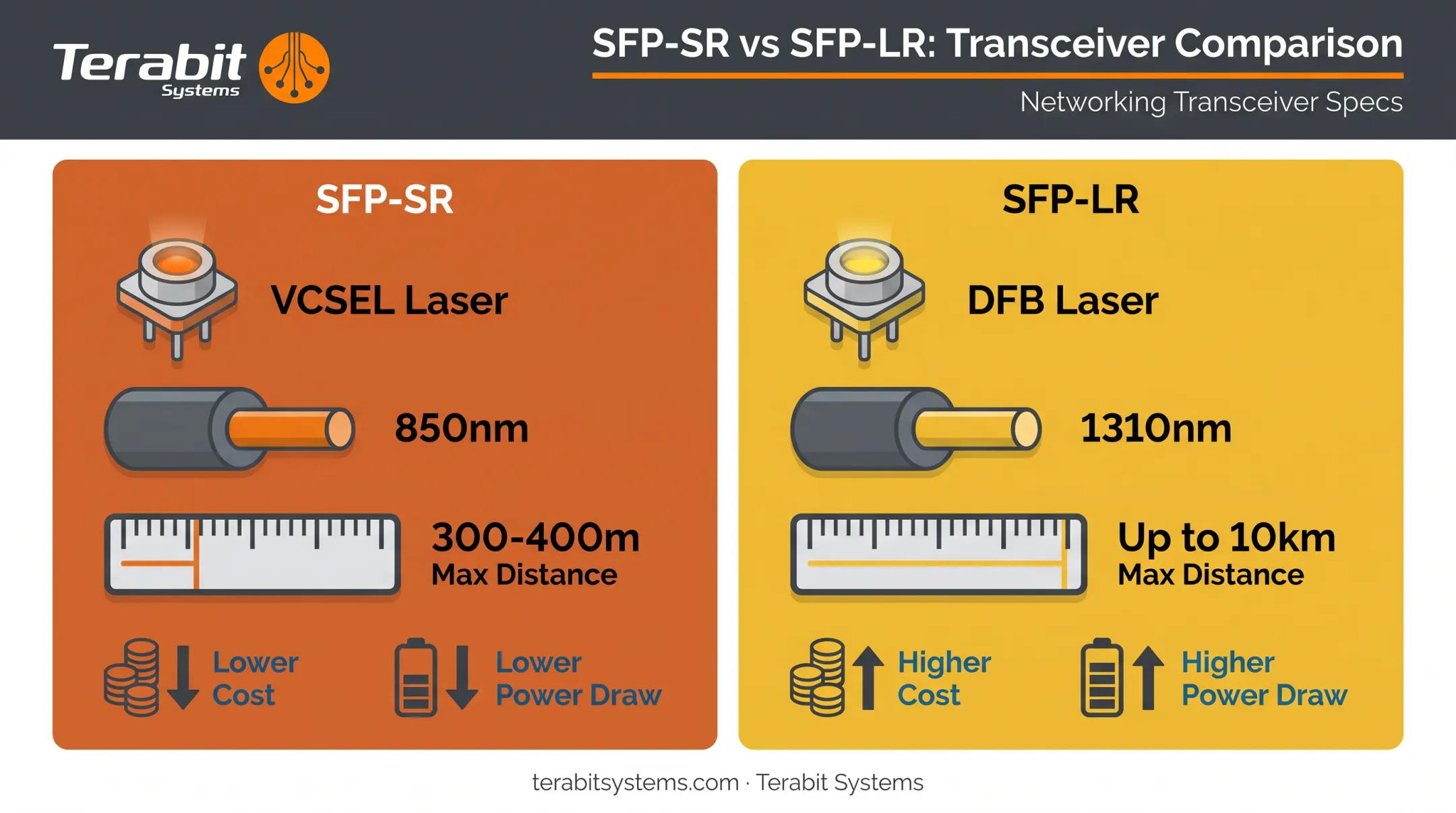

SFP SR vs LR: Quick Comparison
| Attribute | SFP-SR | SFP-LR |
|---|---|---|
| Wavelength | 850nm | 1310nm |
| Fiber Type | Multimode (OM3/OM4) | Single-mode |
| Max Distance | 300m (OM3) / 400m (OM4) | Up to 10km |
| Laser Type | VCSEL | DFB |
| Relative Cost | Lower | Higher |
| Power Draw | Lower | Higher |
These numbers come directly from Cisco's 10GBASE SFP+ modules data sheet, which lists the 840-860nm range for SR and 1260-1355nm for LR.
What Is SFP-SR?
SFP-SR — Short Reach — is built to run the 10GBASE-SR standard over multimode fiber. It uses an 850nm VCSEL laser, a cheaper and less power-hungry light source than what LR requires. The appeal is straightforward: less optical precision, lower cost, and lower power draw.
Terabit's catalog includes the Juniper SFPP-10GE-SR as a working example: a short-range 10GbE SFP+ transceiver with a typical OEM MSRP around $1,500.
You'll also see SR-specific variants on vendor datasheets:
- 10GBASE-SR: standard 10 Gigabit short-reach implementation
- Extended-temperature (-X) versions: same optical spec, hardened for harsher environments
Use Cases for SR

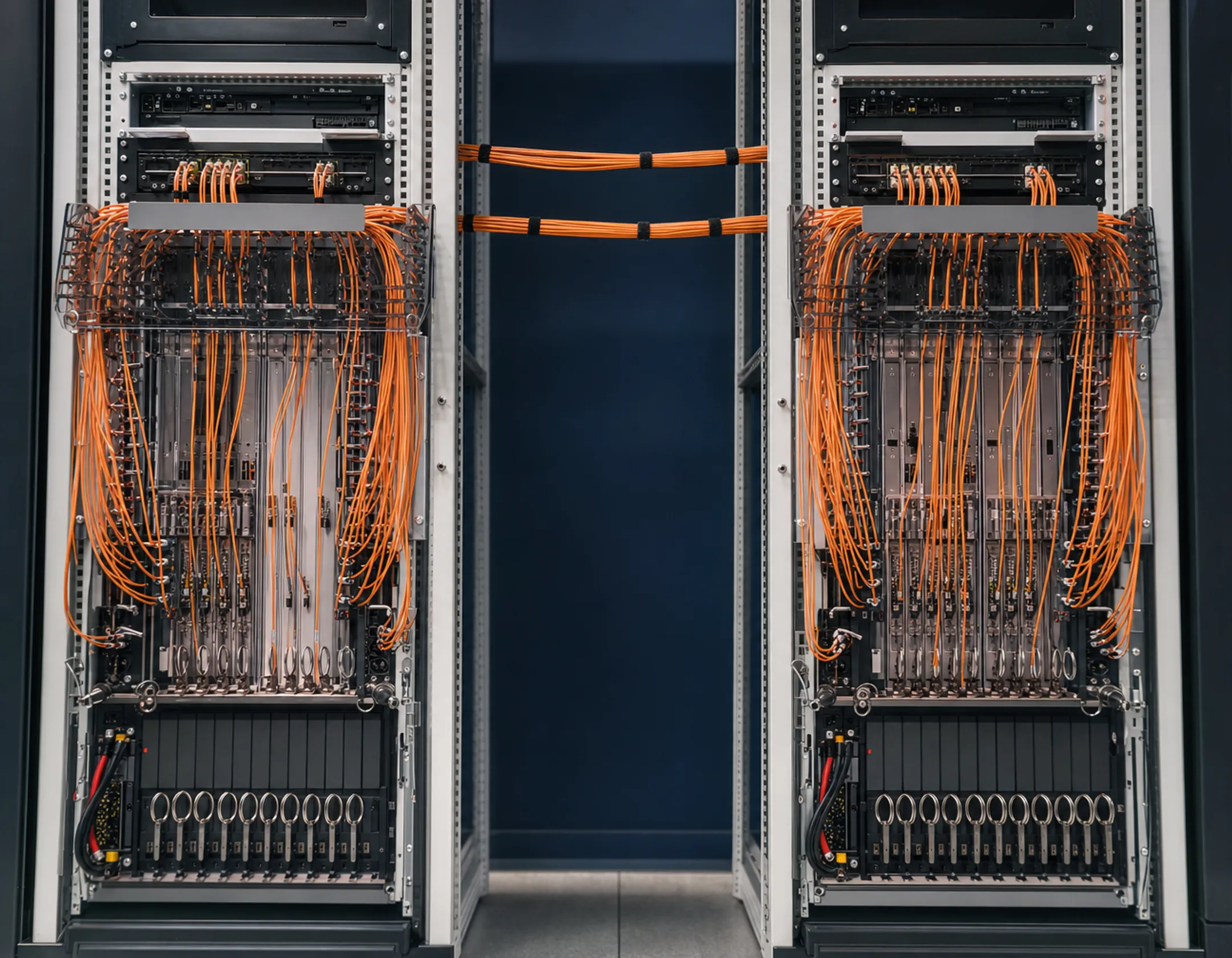

SR modules are the default choice for high-density, short-distance connections:
- Intra-rack and inter-rack data center links
- Top-of-rack switch-to-server connectivity
- General LAN backbone runs within a single building
Multimode fiber remains a dominant short-reach medium in data centers. Corning's own channel data shows that 90% of historical OM3/OM4 data-center channels run under 100 meters, according to Corning's data center fiber connectivity report — well within SR's reach envelope.
Cloud and hosting providers running dense ToR switching architectures lean on SR heavily because those runs almost never exceed a few dozen meters.
What Is SFP-LR?
SFP-LR — Long Reach — runs the 10GBASE-LR standard over single-mode fiber, using a 1310nm DFB laser. DFB lasers are more expensive to manufacture than VCSELs, which is the main reason LR modules cost more. In exchange, you get distance: up to 10km on standard G.652 single-mode fiber.
The Juniper SFPP-10GE-LR in Terabit's catalog is listed at around $4,000 MSRP — roughly $2,500 more than its SR counterpart. That gap isn't arbitrary; it reflects the precision optics needed to hold a stable signal over kilometers instead of meters.
LR also future-proofs the link. Single-mode fiber generally supports higher transmission rates over longer distances than multimode, per Cisco's Campus LAN Design Guide. That same guide notes SMF may already be installed between distribution and core switches in campus environments, so the fiber you need for LR might already be in the wall.
Related Long-Distance Variants
LR isn't the only option once you're leaving the building:
- ER (Extended Reach) — up to 40km on single-mode fiber
- ZR — roughly 80km, though it's a Cisco-specific build rather than an IEEE standard
Use Cases for LR
- Campus networks connecting separate buildings
- ISP backbone and metro-area network (MAN) links
- Regional and triple-play operators extending service across wide areas

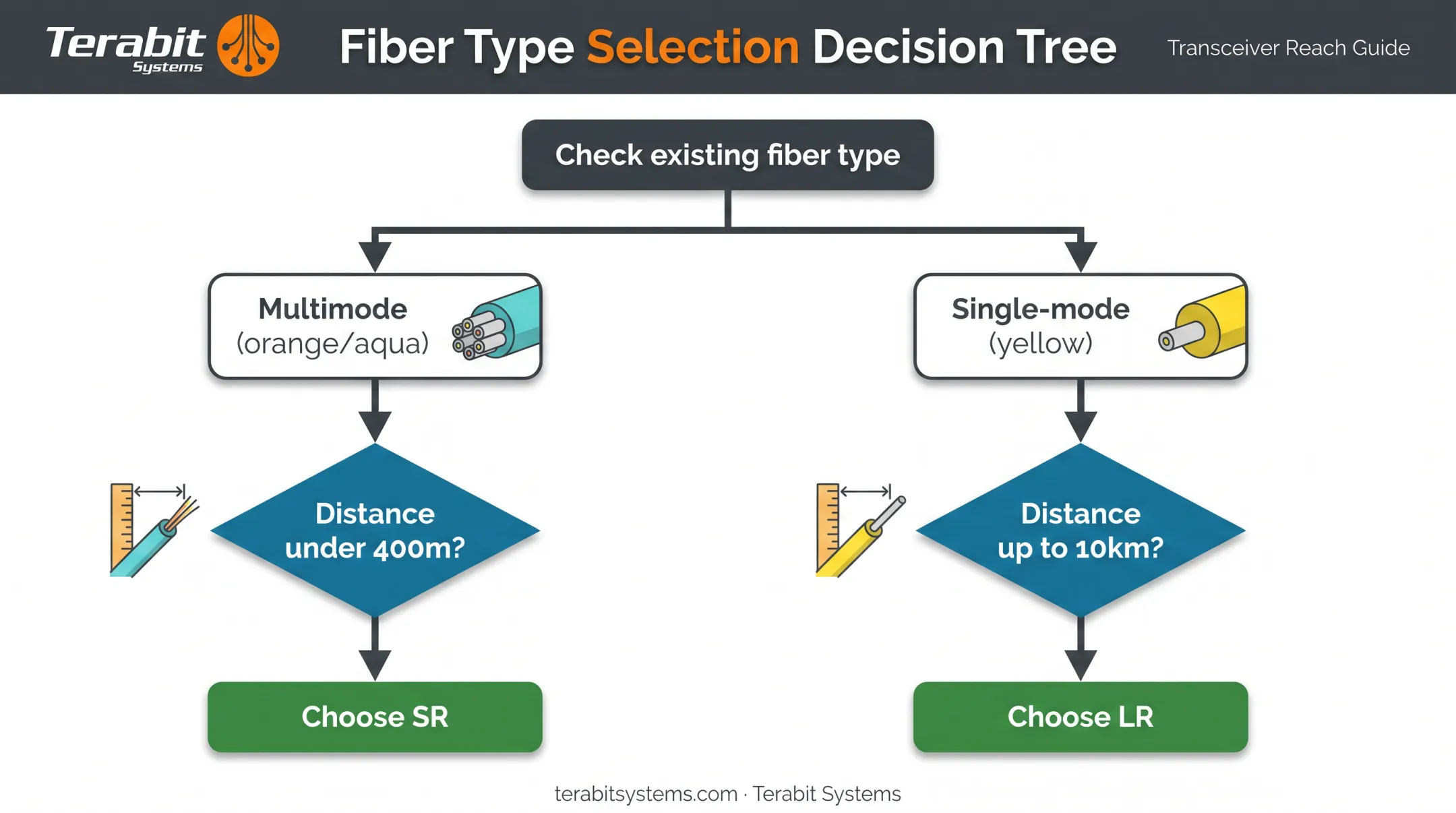

SFP-SR vs LR: Which Should You Choose?
Start with what's already in the ground. Fiber type isn't something you swap on a whim : it dictates the optic, not the other way around.
Weigh these factors:
- Existing fiber type — check the cabling. Multimode is typically color-coded orange or aqua; single-mode is usually yellow.
- Link distance — measure the actual run, including patching, not just the straight-line distance.
- Budget — SR is meaningfully cheaper per unit if the distance allows it.
- Future scalability — if you're installing new fiber anyway, single-mode leaves more room to grow.
Simple rule of thumb: choose SR for in-building or rack-level connections under 400m on a budget. Choose LR when crossing buildings or when you need reach up to 10km.
Mismatching SR and LR does not degrade a link; it prevents the link from coming up at all. Cisco requires wavelength matching at both ends of a connection.
Pairing an 850nm SR optic with a 1310nm LR optic will not establish a link, per Cisco's SFP module installation notes. There is no partial-functionality fallback.
Buying Refurbished SFP Modules: A Cost-Smart Alternative
Once you know whether you need SR or LR, the next question is where to source it without overpaying OEM list price.
Terabit Systems, based in San Francisco, helps Tier-2 cloud providers, regional ISPs, and enterprise procurement teams source tested refurbished SR and LR modules. That includes Juniper SFPP-10GE-SR and SFPP-10GE-LR optics at a fraction of new-equipment pricing.
Every module goes through a documented testing process before resale:
- Physical inspection of connectors, faceplates, and related hardware
- Functional testing, including wire-speed port testing and optical traffic testing
- Cosmetic refurbishment: cleaning and dust removal
- Final QC and kitting with packaging ready for deployment
Every transceiver purchase includes a 1-year replacement or refund guarantee. If something goes wrong within that window, Terabit handles it through an RMA process rather than leaving you stuck with dead inventory.
If your team is decommissioning gear, Terabit also runs a buy-back program:
- Free audit of surplus SR/LR modules and switches
- Fair-market value payout, or trade-in credit toward your next purchase
- Coverage across Arista, Juniper, Cisco, and Brocade hardware
For ITAD teams sitting on boxes of pulled optics, that's a way to recover value instead of writing it off.
Frequently Asked Questions
What does SR mean for SFP?
SR stands for Short Reach (sometimes called Short Range). It describes SFP modules built for multimode fiber and shorter transmission distances, typically under 400 meters.
What does 10GBASE-SR mean?
10GBASE-SR is the IEEE standard for 10 Gigabit Ethernet over short-reach multimode fiber, with a maximum reach of 300m on OM3 or 400m on OM4 fiber.
Are LR and SR SFPs compatible with each other?
No. Both ends of a link need matching module types and matching fiber. SR and LR use different wavelengths and aren't interoperable on the same connection.
Are SFP-10G-SR and SFP-10G-LR single-mode or multimode?
SFP-10G-SR uses multimode fiber (OM3/OM4). SFP-10G-LR uses single-mode fiber.
Which SFP is used for long distance?
LR is the standard long-distance option, reaching up to 10km. For longer runs, ER (40km) and ZR (roughly 80km) extend beyond LR's range.
What is the difference between SFP-10G-LR and SFP-10G-SR?
SR uses an 850nm VCSEL laser over multimode fiber for short distances at a lower cost. LR uses a 1310nm DFB laser over single-mode fiber for distances up to 10km, at a higher price.
