OSFP vs QSFP-DD Transceivers

If you're planning a 400G or 800G upgrade, you've likely hit a fork in the road: OSFP or QSFP-DD? These two form factors now dominate high-speed Ethernet and InfiniBand deployments, and picking the wrong one can mean switch incompatibility, thermal headaches, or blown budgets down the line.

Choosing between them isn't just a spec sheet exercise. It affects which switches you can buy, how much cooling your rack needs, and whether your existing QSFP inventory still has a job to do. This guide breaks down both form factors clearly, then covers how buying refurbished transceivers — regardless of which you choose — can meaningfully cut costs.

Key Takeaways

• OSFP adds thermal headroom and a clearer 800G/1.6T and InfiniBand path, without native backward compatibility
• QSFP-DD drops into QSFP+/QSFP28/QSFP56 ports for the lower-friction upgrade path
• Both run 8 lanes at 400G+; real gaps are mechanical fit, thermal design, and platform ecosystem
• Choose from switch infrastructure and power budget first—not the spec sheet alone
• Refurbished 400G/800G optics cut acquisition cost versus new OEM modules

OSFP vs QSFP-DD: Quick Comparison

Size and Form Factor

OSFP is the bigger module. QSFP-DD keeps a footprint close to legacy QSFP, just slightly deeper.

• OSFP: Larger mechanical envelope, defined by its own MSA connector, cage, and latch system
• QSFP-DD: Height and width match standard QSFP; only depth increases

That extra size is what gives OSFP room for better heat dissipation.

Power Consumption and Thermal Capacity

Both families define multiple power classes, including a "greater than 14W" tier for high-power optics. In practice:

• OSFP tends to accommodate higher-power, longer-reach, and coherent optics thanks to its larger thermal envelope and riding heatsink pitch options
• QSFP-DD works within the QSFP thermal ecosystem, with its 2023 MSA thermal whitepaper describing 2RU designs cooling modules at 40W or higher in the right chassis

Don't trust generic "15W vs 12W" claims. Actual power support depends on the specific module class and your switch's cooling design, not the form factor label alone.

Backward Compatibility

This is the single biggest differentiator:

• OSFP has no native backward compatibility. You'll need an adapter or active cable assembly to bridge to QSFP ports
• QSFP-DD cages accept QSFP+, QSFP28, and QSFP56 modules directly, letting teams upgrade lane-by-lane instead of ripping out entire switch fleets

Port Density and Applications

Both families can support high port counts, but density is chassis-specific, not a form-factor guarantee. QSFP-DD's spec allows up to 36 modules in a 1U rack "with suitable thermal design," which is conditional, not universal. OSFP density depends on your chosen port pitch and whether a riding heatsink is used.

Where each form factor shows up in the field also diverges:

• OSFP shows up heavily in InfiniBand NDR/XDR and AI training fabrics
• QSFP-DD dominates general-purpose Ethernet switching in enterprise and cloud networks

What Is OSFP?

OSFP (Octal Small Form Factor Pluggable) is an 8-lane transceiver family built to handle 400G today, with documented mappings to 800G and 1.6T as speeds increase. The same physical platform carries Ethernet and InfiniBand traffic, so it isn't locked to a single protocol.

Core benefits:

• Larger thermal envelope supports higher-power, longer-reach optics without excessive signal degradation
• Multiple mechanical variants for different deployment needs
• Multi-protocol, multi-generation path from 400G through 800G and toward 1.6T

Variations Worth Knowing

• OSFP-RHS (riding heatsink) — built for denser port pitches
• OSFP-FLT (flat top) — designed for liquid-cooled environments
• OSFP224 — targets next-generation, higher-speed lane rates

Use Cases of OSFP

OSFP shows up most in environments where thermal headroom and raw bandwidth matter more than legacy compatibility:

• AI/ML training clusters running InfiniBand NDR and XDR fabrics
• Hyperscale and HPC data centers pushing toward 800G and beyond

NVIDIA's NDR documentation describes 64-port switches that use OSFP connectors with two InfiniBand links per connector—a clear case of denser AI fabric design. Its Quantum-X800 platform goes further: 4U switches with 144 XDR ports across 72 OSFP cages for training trillion-parameter models.

The InfiniBand Trade Association roadmap also names OSFP as a path to 1.6T links.

What Is QSFP-DD?

QSFP-DD (Quad Small Form Factor Pluggable Double Density) doubles QSFP28's electrical lanes from 4 to 8, unlocking 200G, 400G, and now 800G speeds through QSFP-DD800, all while keeping the same mechanical footprint QSFP users already know.

The core benefit is backward compatibility. Network teams can upgrade incrementally instead of replacing an entire switch fleet at once, which keeps capital costs manageable.

Variations Worth Knowing

• QSFP-DD (400G): original spec, still the most widely deployed
• QSFP-DD800: doubles throughput inside the same mechanical envelope
• QSFP-DD1600: next density step on the same form-factor path for multi-terabit ports

Use Cases of QSFP-DD

• Enterprise and cloud Ethernet switches moving from 100G/200G to 400G
• Tier-2 cloud providers and regional ISPs staging upgrades on tighter budgets
• Data center leaf/spine links that need 400G today with 100G breakout to existing gear

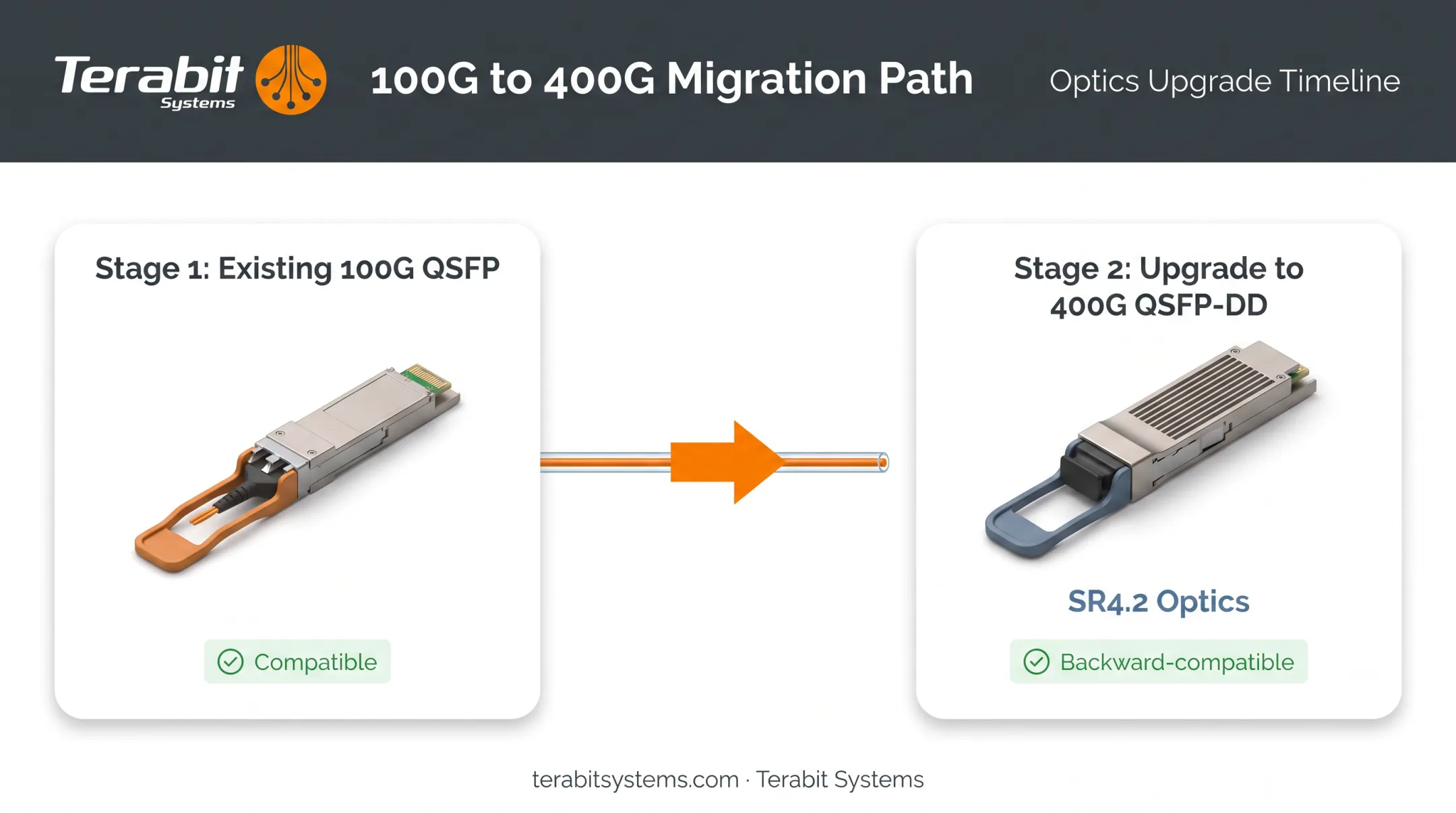

Cisco's own migration documentation shows existing 100G QSFP SR fiber paired with 400G QSFP-DD SR4.2 optics. One end of the link can move to 400G while the other stays on high-density 100G with breakout.

That is the practical value of backward compatibility: you keep the fiber plant and stage the switch upgrade instead of ripping out the fleet at once.

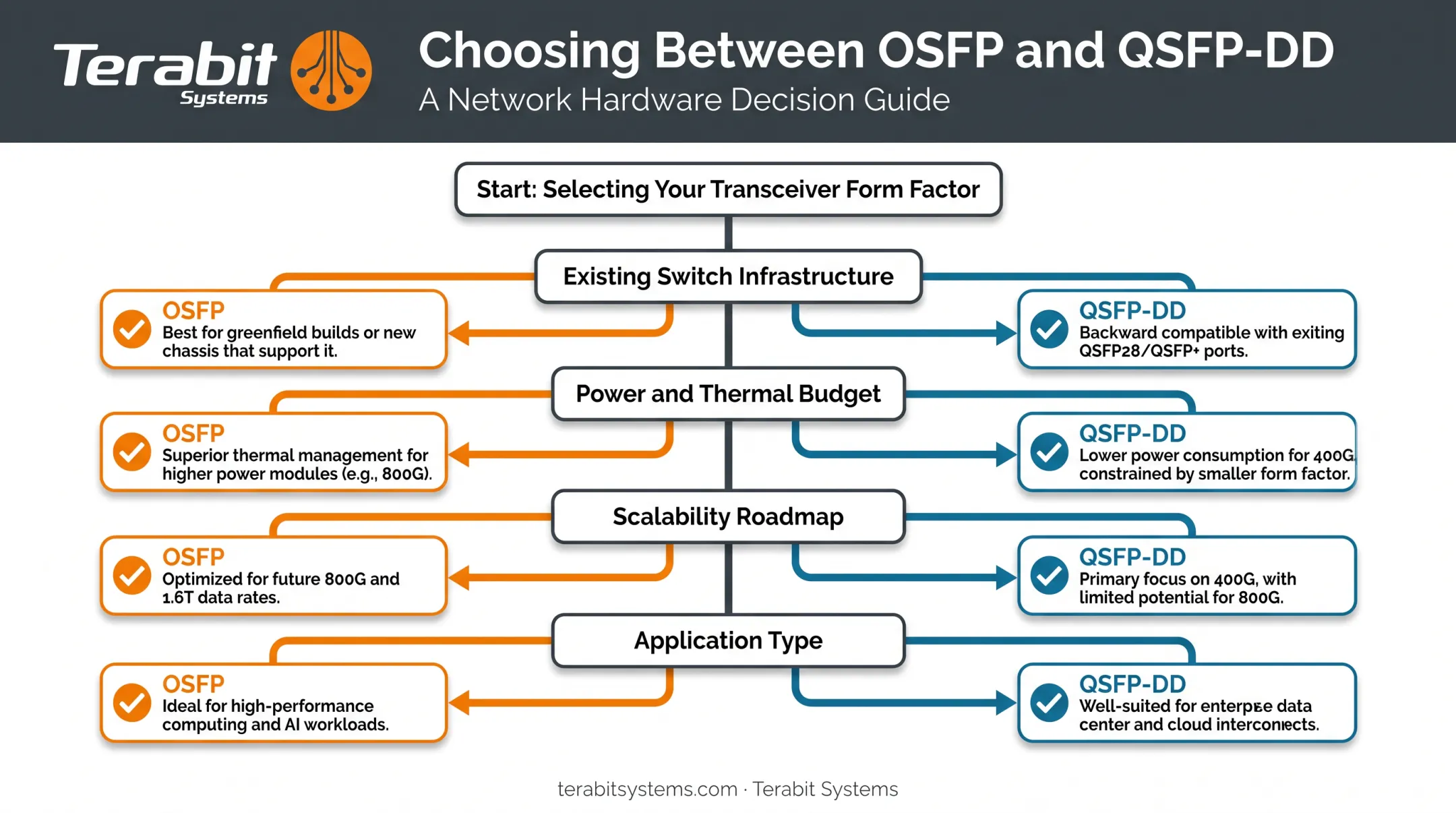

OSFP vs QSFP-DD: Which Is Better?

Neither form factor wins by default. The right call depends on four things:

1. Existing switch infrastructure: do you already have QSFP cages deployed?
2. Power and thermal budget: can your chassis cool higher-power optics?
3. Scalability roadmap: are you planning 800G today or 1.6T down the line?
4. Application: Ethernet-focused, or InfiniBand/AI fabric?

Choose QSFP-DD if:

• You have existing QSFP+/QSFP28/QSFP56 infrastructure
• Cost-effective, incremental upgrades matter more than raw thermal headroom
• Your network is primarily Ethernet-based enterprise or cloud traffic

Choose OSFP if:

• You need higher thermal headroom for long-reach or coherent optics
• You're building or expanding an InfiniBand fabric
• Your roadmap points toward 800G and 1.6T at scale

Match the form factor to the cages, cooling, and roadmap you already have—not to a generic “best” label.

Buying Transceivers the Smart Way

New OSFP and QSFP-DD modules carry steep price premiums, especially at 400G and 800G speeds. That's where refurbished and compatible transceivers come in, often delivering the same functional performance at a fraction of OEM list price.

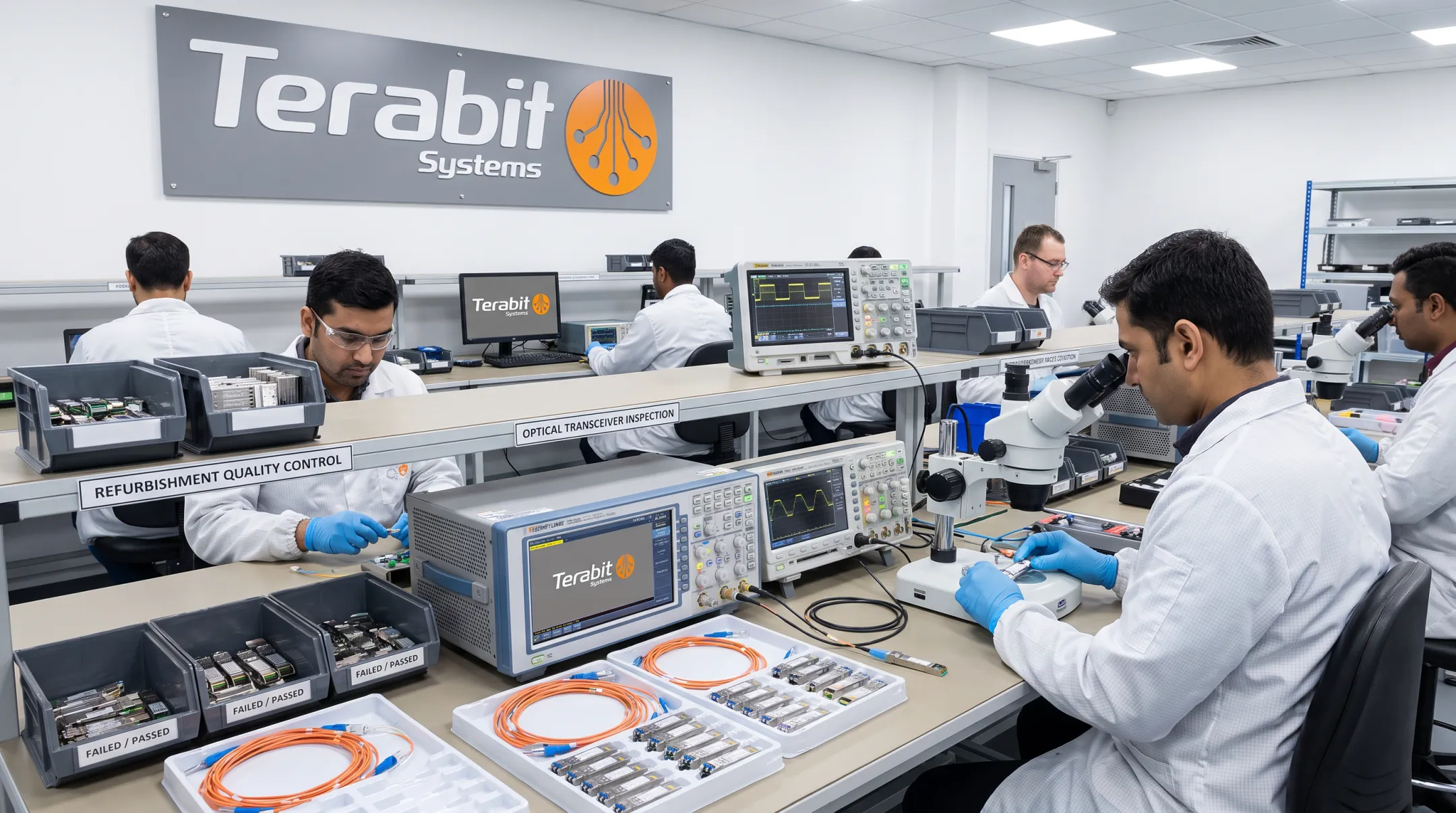

Terabit Systems catalogs OSFP and QSFP-DD transceiver modules across major brands, including Juniper, Cisco, Arista, and Brocade. Every unit goes through a five-step quality control process:

1. Physical inspection for damage to connectors and hardware
2. Functional testing, including passing live traffic through optical transceivers
3. Factory-default reset with password and configuration removal
4. Cosmetic refurbishment with cleaning and dust removal
5. Final QC and professional kitting

That process backs a 1-year replacement or refund warranty on direct offline purchases, with online and reseller orders generally covered for 90 days. If a module fails during that window, Terabit Systems will replace it at no cost or issue a refund up to the original purchase price.

If you're upgrading from QSFP-DD to OSFP (or the reverse), your surplus gear still has value. Terabit Systems' "Sell Your Gear" buy-back program purchases used networking equipment — including optics — at fair market value or trade-in credit, helping offset the cost of your next upgrade instead of letting decommissioned modules sit in a drawer.

Frequently Asked Questions

What is OSFP?

OSFP is an 8-lane pluggable transceiver form factor built for 400G, 800G, and future high-speed Ethernet and InfiniBand applications. It offers more thermal headroom than QSFP-DD, making it well-suited to higher-power optics.

What is the difference between OSFP and QSFP?

QSFP is an older 4-lane form factor that tops out around 100G/200G. OSFP uses 8 lanes for much higher bandwidth and is physically larger, with greater thermal capacity to match.

What is the main difference between QSFP and QSFP-DD?

QSFP-DD doubles QSFP's electrical lanes from 4 to 8, enabling 400G and 800G speeds. It keeps the QSFP mechanical footprint, so QSFP-DD ports remain backward compatible with QSFP modules.

Is QSFP-DD backward compatible with older QSFP modules?

Yes. QSFP-DD ports support QSFP+, QSFP28, and QSFP56 modules directly, though those modules still run at their original, lower speeds.

Which form factor uses more power, OSFP or QSFP-DD?

OSFP generally supports higher power classes thanks to its larger thermal envelope, making it better suited to high-power, long-reach optics. Both families define multiple power tiers, so always check the specific module class rather than relying on a single number.

Can I mix OSFP and QSFP-DD transceivers in the same network?

Not in the same port without an adapter or qualified active assembly — the two form factors use different cages, connectors, and latch systems. Your switch hardware needs to match the form factor you intend to deploy.
